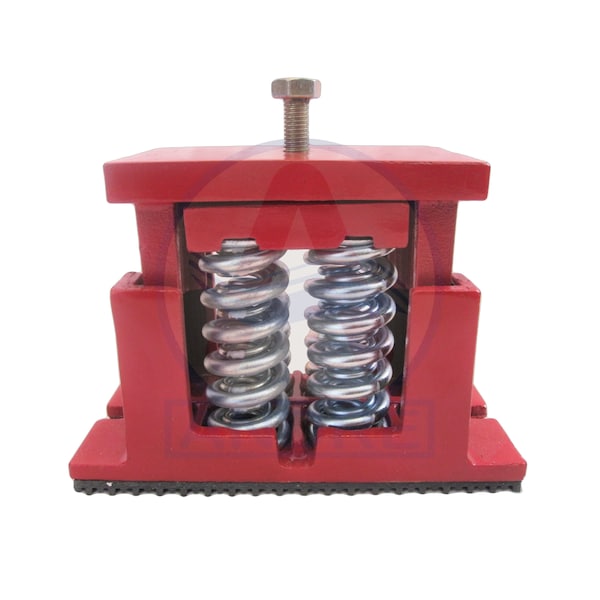

SPRING MNTS 2, 4 SPRING LD 2630-3940LB
| Item | Spring Mount |
|---|---|
| Height | 7-1/4 in |
| Width | 5 in |
| Spring Color | Silver |
| Includes | Three Piece Cast Iron and Powder Coated Housing, Steel Springs, Mounts Provided with slotted mounting holes, Non-Skid elastomeric Acoustic Pad on Base, Elastomeric Snubbers in Inner Panel, Built In Leveling Device |
| Length | 10-1/4 in |
| Rated Deflection | 2" |
| Finish | Cast Iron Housing: Red Powder Coat; Springs: Hot Dip Galvanized |
| Material | Cast Iron Housing; Spring Steel, Elastomeric Pad, Steel Hardware |
| Rated Load | 3522LBS |
| Capacity | 3,470 lb |
| For Use With | Compressors, Air Handling Units, Centrifugal Fan, Pumps, Chillers, Air Conditioning Equipment |
| Application | These spring hangers are normally used in critical areas where noise and vibration need to be controlled |
| Features | Design allows angular hanger misalignment. Springs have 50% additional travel to max load as per ASHRAE recommendations. The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation |
| Spring Identifier Color | White, Gray |
| Color | Blue |
| Max Load | 5,256 lb |
| Package Quantity | 1 |
