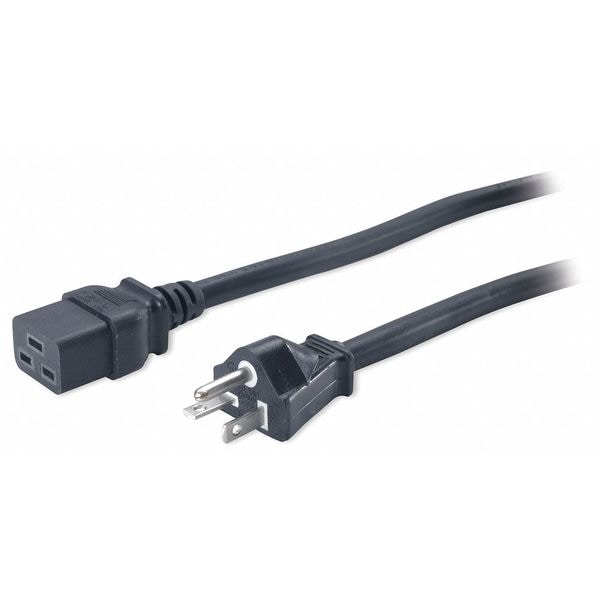

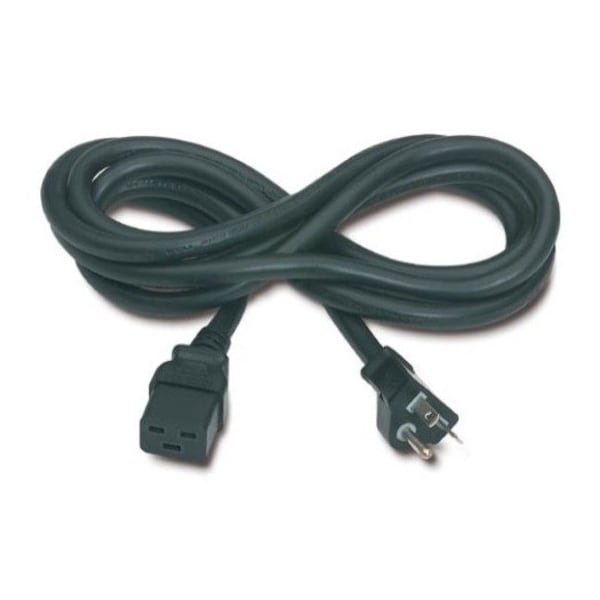

Power Cord, 5-20P, SJT, 8.2 ft., Blk, 16A, 12/3
| Item | Power Cord |
|---|---|
| Max. Amps | 16 |
| Temp. Rating | 32 to 113 deg F |
| Gauge/Conductor | 4 |
| Plug Configuration | NEMA 5-20P |
| Number of Conductors | 3 |
| Cord Length | 8.2 ft |
| Wire Size | 12 AWG |
| Trade Designation | SJT |
| Voltage | 100 to 120V AC |
| Cord Shape | Round |
| Connection Type | IEC C19 |
| Jacket Color | Black |
| Jacket Material | Rubber |
| Standards | CSA, UL |
| NEMA Plug Configuration | 5-20P |
| Temp. Range | 32 to 113 deg F |
| Jacket Material - Wire and Cable | Rubber |
| NEC Cord Designation | SJT |
| Wire and Cable Item | Power Cord |
| Connector End | IEC C19 |
| Shape | Round |
| Max. Cord Temp. | 113 Degrees F |
| Gauge/Conductor - Wire and Cable | 12/3 |
| Connector End - Wire and Cable | IEC C19 |
| Gauge/Conductor (Wire and Cable) | 4 |
| Connector End (Wire and Cable) | IEC C19 |
| Color | Black |
| Voltage Rating | 120 V AC |
| Additional Information | Operating Environment: 0 to 45 °C, Storage Temperature: -25 to 65 °C, Operating Relative Humidity: 0 to 95 %, Storage Relative Humidity: 0 to 95 %, Operating Elevation: 0 to 10000 feet, Storage Elevation: 0 to 50000 feet |
| Product Name | Standard Power Cord |
| Certifications & Standards | CSA |
| Product Color | Black |
| First End Connector Type | NEMA 5-20P |
| Package Quantity | 1 |
