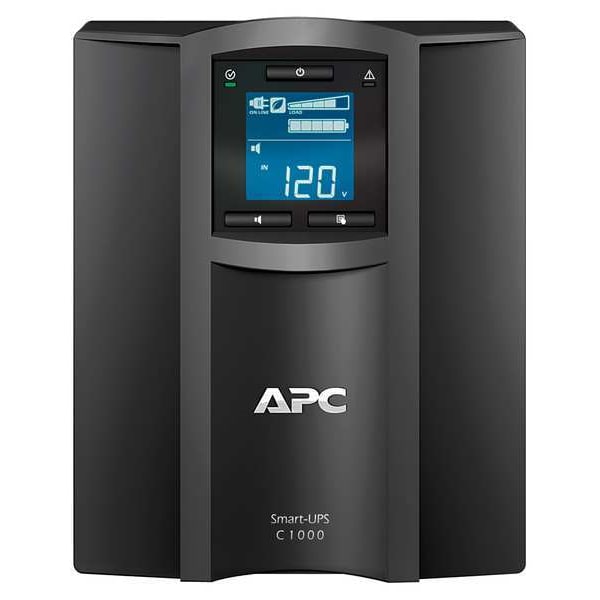

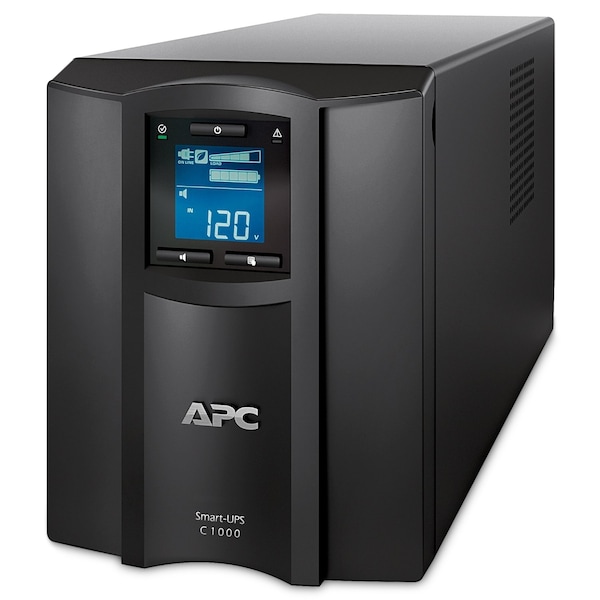

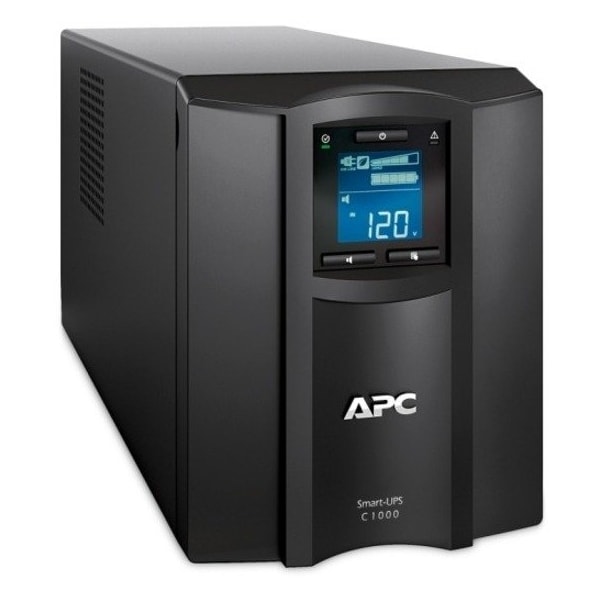

Smart UPS, 1kVA, Line Interactive, Out: 120V AC In: 120V AC
| VA Rating - UPS Systems | 1 kVA |
|---|---|
| Item | Smart UPS |
| UPS Type | Line Interactive |
| Power Rating | 1 kVA |
| Mounting | Tower, Rack |
| Wattage | 600 W |
| Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Backup Time (Half/Full Load) | 19 min/7 min |
| Outlet Type | (8) UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 8 |
| Ports | RJ45 Serial, USB |
| Height | 8 in |
| Width | 17 in |
| Footnotes | 2,4 |
| Green Environmental Attribute | Product is Rechargeable |
| Input Current | 8.3 A |
| Hz | 50/60 Hz |
| Phase | Single |
| Includes | USB Cables |
| Fax/Modem Line Protection | Yes |
| NEMA Plug Configuration | 5-15P |
| Standards | cULus, ENERGY STAR V2.0 (USA), RoHs |
| Automatic Volts Regulation | Yes |
| Transfer Time | 8 to 10 msec |
| Cord Length | 6 ft |
| NEMA Receptacle Configuration | 5-15R |
| Depth | 17 in |
| Display Type | LCD |
| Special Features | Advanced Battery Management, High Efficiency Green Mode, LCD Display with Status and Measurement Information, Network Grade Power Conditioning, Pure Sine-Wave Output |
| Housing Color | Black |
| Battery Type | Lead Acid |
| For Use with | Network Device, Router, POS Terminal, Network Hub, Server, Switch |
| Capacity - Batteries | 1000 VA/600 W |
| Overall Width | 17.1 cm |
| Voltage | 120 |
| Input Connection | 6 ft Cord with NEMA 5-15P Plug |
| Housing Material | Steel |
| Online Thermal Dissipation | 175 Btu/h |
| Input Frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Software Package | SmartConnect software for remote power monitoring feature availability varies by terms of use |
| Acoustic Level | 41 dBA |
| Product Certifications | cULus || ENERGY STAR V2.0 (USA) |
| Ambient Air Temperature For Storage | -15-45°C |
| Other Output Voltages | 110 V || 125 V |
| Kw Rating | 600 W |
| Ambient Air Temperature For Operation | 0 to 40°C |
| Relative Humidity | 0-95 % |
| Mounting Location | front |
| Storage Altitude | 0-50000 ft |
| Number Of Cables | 1 |
| Efficiency At Full Load | 85...136 V adjustable || 93...130 V |
| Provided Equipment | USB cable |
| Additional Specification | cloud-enabled monitoring |
| Usb Compatible | Yes |
| Harmonic Distortion | Less than 5% |
| Battery Life | 3-5 year(s) |
| Other Input Voltages | 110 V || 125 V |
| Free Slots | 0 |
| Rated Power In Va | 1,000 VA |
| Alarm | alarm when on battery : distinctive low battery alarm : configurable delays |
| Control Panel | Multi-function LCD status and control console |
| Communication Port Support | SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
| Operating Altitude | 0...10000 ft |
| Waveform Type | Sine Wave |
| Load Capacity | 1000 VA/600 W |
| Input Voltage Range | 93 AC to 130 V AC |
| Number of Battery & Surge Outlets | 8 |
| Form Factor | Tower |
| Network (RJ-45) | Yes |
| Hot Swappable | Yes |
| Package Contents | Smart-UPS C 1000VA LCD 120V with SmartConnect , USB cable |
| Surge Energy Rating | 680 J |
| Application/Usage | POS Terminal, Network Device, Network Hub, Switch, Router, Server |
| Typical Battery Recharge Time | 3 hr |
| Surge Suppression Rating | 680 J |
| Operating Temperature - Minimum | 32 deg F |
| Power Cord Length | 6 ft |
| Operating Temperature - Maximum | 104 deg F |
| Output Ports Included | USB |
| Audible Alarm Conditions | Low Battery |
| Battery Recharge Time | 3 hr |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Includes Battery | Battery Included |
| Input Current - Maximum | 8.3 A |
| Power Rating - Real | 600 W |
| Replacement Battery Part Number | APCRBC142 |
| External Battery Compatible | Not External Battery Pack Compatible |
| Manufacturer Warranty | 2 yr |
| Package Quantity | 1 |
