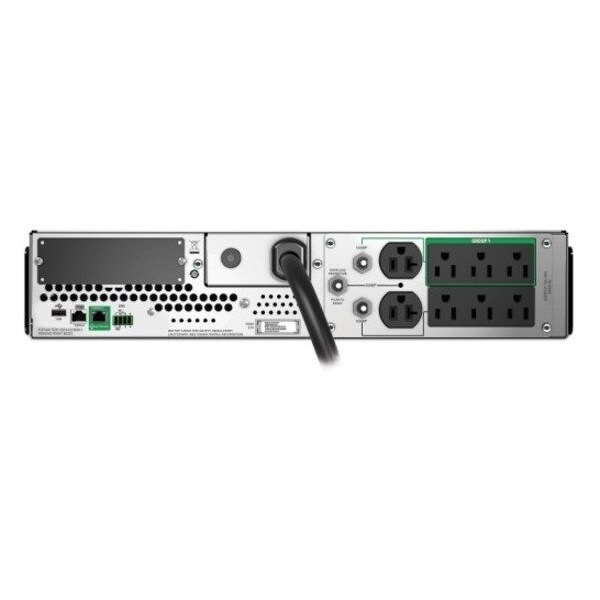

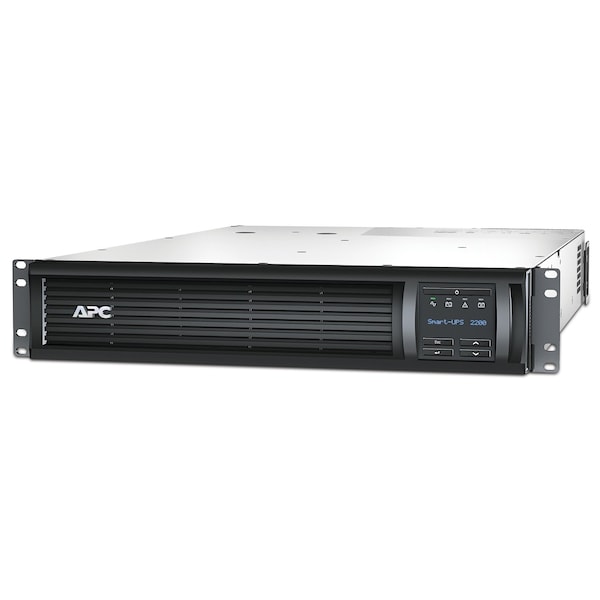

UPS System, 2200VA, Line Interactive, Out: 120V AC In: 120V AC
| Item | UPS System |
|---|---|
| VA Rating - UPS Systems | 1.92 kVA |
| UPS Type | Line Interactive |
| Power Rating | 2,200 VA |
| Mounting | Rack |
| Wattage | 1.8 kW |
| Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Backup Time (Half/Full Load) | 15.8 min/5.4 min |
| Outlet Type | UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 8 |
| Ports | RJ45 10/100Base-T, RJ45 Serial, Smart Slot, USB |
| Display Type | LCD |
| NEMA Plug Configuration | 5-20P |
| Hz | 50/60 Hz ( +/-3 Hz) |
| Depth | 27 in |
| Phase | Single |
| Transfer Time | 4 to 8 msec |
| Width | 27 in |
| Cord Length | 8 ft |
| NEMA Receptacle Configuration | 5-20R; 5-15R |
| Height | 3 in |
| Standards | cULus, ENERGY STAR V2.0 (USA), RoHS |
| Fax/Modem Line Protection | No |
| Automatic Volts Regulation | Yes |
| Input Current | 16 A |
| Includes | Rack Mounting Brackets, Rack Mounting Support Rails, Smart UPS Signaling RS-232 Cable, USB Cables |
| Housing Color | Black |
| Capacity - Batteries | 1920 VA/1980 W |
| Battery Type | Lead Acid |
| Overall Height | 8.6 cm |
| Overall Width | 43.2 cm |
| Housing Material | Steel |
| Product Certifications | cULus || ENERGY STAR V2.0 (USA) |
| Ambient Air Temperature For Storage | -15-45°C |
| Input Voltage Range | 75 AC to 154 V AC |
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
| Ambient Air Temperature For Operation | 0-40°C |
| Free Slots | 1 |
| Provided Equipment | Rack Mounting brackets || Rack Mounting support rails || Smart UPS signalling RS-232 cable || USB cable |
| Rated Power In Va | 1,920 VA |
| Additional Specification | cloud-enabled monitoring |
| Alarm | alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Battery Life | 3-5 year(s) |
| Hot Swappable | Yes |
| Number of Battery & Surge Outlets | 8 |
| Package Contents | Smart-UPS 2200VA LCD RM 2U 120V with SmartConnect , Rack mounting brackets, Rack mounting support rails, Smart UPS signalling RS-232 cable, USB cable |
| Other Input Voltages | 110 V || 125 V |
| Control Panel | LED status display with on line : on battery : replace battery and overload indicators, Multi-function LCD status and control console |
| Input Frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Mounting Location | front |
| Usb Compatible | Yes |
| Battery Chemistry | Valve Regulated Lead Acid |
| Online Thermal Dissipation | 215 Btu/h |
| Kw Rating | 1,920 W |
| Software Package | SmartConnect software for remote power monitoring feature availability varies by terms of use |
| Harmonic Distortion | Less than 5% |
| Number Of Cables | 1 |
| Load Capacity | 1920 VA/1980 W |
| Relative Humidity | 0-95 % |
| Rack Height | 2 U |
| Number Of Rack Unit | 2 U |
| Storage Altitude | 0-50000 ft |
| Typical Battery Recharge Time | 3 hr |
| Operating Altitude | 0...10000 ft |
| Efficiency At Full Load | 75...154 V adjustable || 82...143 V |
| Other Output Voltages | 110 V || 125 V |
| Form Factor | Rack-mountable |
| Surge Energy Rating | 530 J |
| Waveform Type | Sine Wave |
| Acoustic Level | 55 dBA |
| Communication Port Support | SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
| External Battery Compatible | Not External Battery Pack Compatible |
| Battery Life - Minimum | 3 yr |
| Overall Depth | 68.3 cm |
| Battery Recharge Time | 3 hr |
| Replacement Battery Part Number | RBC43 |
| Output Ports Included | RS-232, USB |
| Surge Suppression Rating | 530 J |
| Operating Temperature - Maximum | 104 deg F |
| Includes Battery | Battery Included |
| Operating Temperature - Minimum | 32 deg F |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Frequency | 50/60 Hz |
| Receptacle Configuration | 5-15R, 5-20R |
| Power Cord Length | 8 ft |
| Audible Alarm Conditions | Overload |
| Manufacturer Warranty | 3 yr |
| Input Current - Maximum | 16 A |
| Power Rating - Real | 1.92 kW |
| Package Quantity | 1 |
