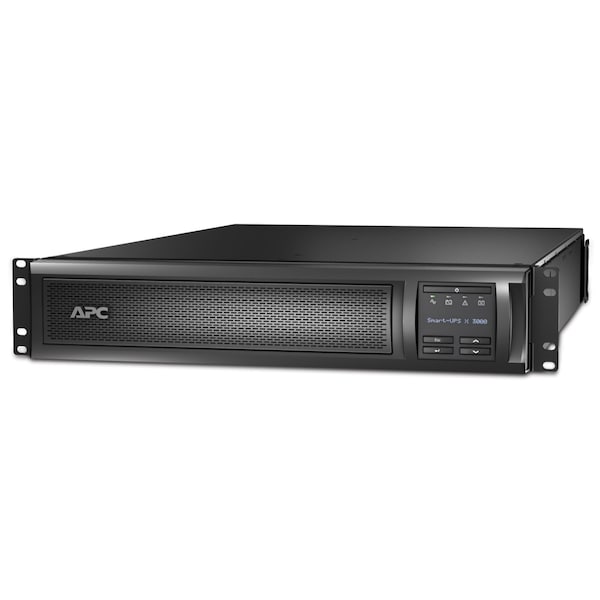

UPS System, 3000VA, Line Interactive, Out: 120V AC In: 120V AC
| Item | UPS System |
|---|---|
| UPS Type | Line Interactive |
| Power Rating | 3,000 VA |
| Mounting | Tower, Rack |
| Wattage | 2.7 kW |
| Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Backup Time (Half/Full Load) | 18 min/6.3 min |
| Outlet Type | UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 7 |
| Fax/Modem Line Protection | No |
| Standards | BSMI, CSA, NOM, RoHS, VCCI Class A |
| NEMA Plug Configuration | L5-30P |
| Cord Length | 8 ft |
| Transfer Time | 4 to 8 msec |
| Automatic Volts Regulation | Yes |
| Width | 26 in |
| Hz | 50/60 Hz ( +/-3 Hz) |
| VA Rating - UPS Systems | 3 kVA |
| Includes | Rack Mounting Brackets, Rack Mounting Hardware, Rack Mounting Support Rails, Removable Support Feet, Smart UPS Signalling RS-232 Cable, USB Cable |
| Depth | 26 in |
| NEMA Receptacle Configuration | 5-15R, 5-20R, L5-30R |
| Ports | EPO, RJ45 10/100Base-T, RJ45 Serial, Smart Slot, USB |
| Input Current | 24 A |
| Phase | Single |
| Display Type | LCD, LED |
| Height | 3 in |
| Battery Type | Lead Acid |
| Capacity - Batteries | 2880 VA/2700 W |
| Housing Color | Black |
| Overall Height | 8.5 cm |
| Overall Width | 43.2 cm |
| Housing Material | Steel |
| Other Input Voltages | 100 V || 110 V || 127 V |
| Storage Altitude | 0-50000 ft |
| Battery Life | 3-5 year(s) |
| Typical Battery Recharge Time | 3 hr |
| Usb Compatible | Yes |
| Rated Power In Va | 2,880 VA |
| USB | Yes |
| Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
| Total Number of Expansion Slots | 1 |
| Other Output Voltages | 100 V || 110 V || 127 V |
| Form Factor | Rack-mountable |
| Operating Altitude | 0...10000 ft |
| Number Of Rack Unit | 2 U |
| Surge Energy Rating | 540 J |
| Number Of Cables | 1 |
| Additional Specification | extended run |
| Kw Rating | 2,700 W |
| Product Certifications | BSMI || CSA || NOM || TUV || VCCI Class A |
| Emergency Power OFF | Yes |
| Hot Swappable | Yes |
| Ambient Air Temperature For Storage | -15-45°C |
| Alarm | alarm when on battery : distinctive low battery alarm : configurable delays |
| Efficiency At Full Load | 70...153 V |
| Number of Battery & Surge Outlets | 7 |
| Online Thermal Dissipation | 276 Btu/h |
| Free Slots | 1 |
| Input Frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Package Contents | Smart-UPS X SMX3000RMLV2U 3000 VA Rack-mountable UPS , CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable |
| Serial Port | Yes |
| Product Series | X |
| Acoustic Level | 55 dBA |
| Ambient Air Temperature For Operation | 0-40°C |
| Provided Equipment | CD with software || Documentation CD || Installation guide || Rack mounting hardware || Rack Mounting brackets || Rack Mounting support rails || Removable support feet || Smart UPS signalling RS-232 cable || USB cable |
| Waveform Type | Sine Wave |
| Control Panel | Multi-function LCD status and control console, LED status display with on line : on battery : replace battery and overload indicators |
| Load Capacity | 2880 VA/2700 W |
| Harmonic Distortion | Less than 5% |
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
| Rack Height | 2 U |
| Relative Humidity | 0-95 % |
| Battery Chemistry | Valve Regulated Lead Acid |
| Mounting Location | front |
| Includes Battery | Battery Included |
| Input Current - Maximum | 24 A |

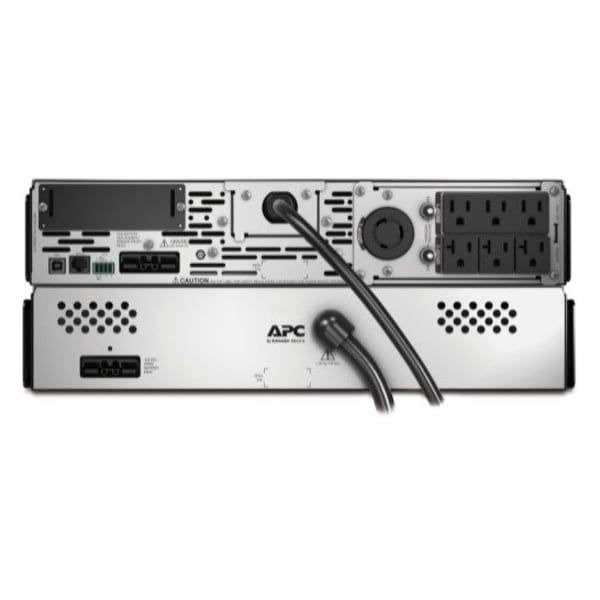

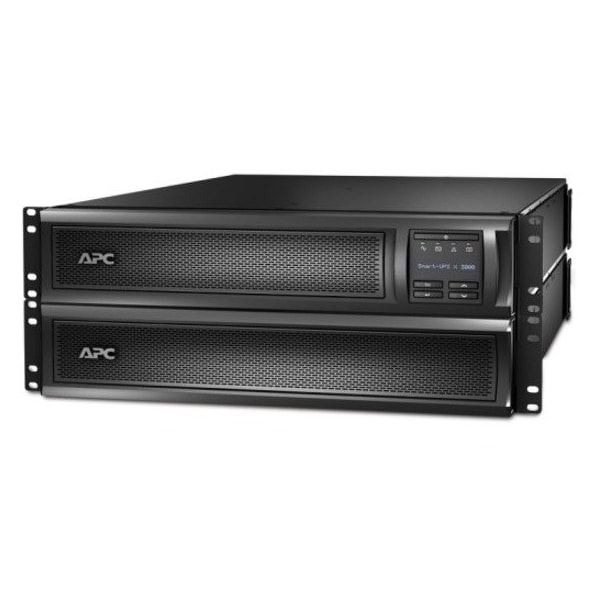

| External Battery Pack Part Number | SMX120RMBP2U |
| Manufacturer Warranty | 3 yr |
| Replacement Battery Part Number | APCRBC117 |
| External Battery Compatible | External Battery Pack Compatible |
| Frequency | 50/60 Hz |
| Battery Life - Minimum | 3 yr |
| Audible Alarm Conditions | Low Battery |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Output Ports Included | RS-232, USB |
| Power Rating - Real | 2.7 kW |
| Power Cord Length | 8 ft |
| Overall Depth | 66.7 cm |
| Surge Suppression Rating | 540 J |
| Battery Recharge Time | 3 hr |
| Operating Temperature - Maximum | 104 deg F |
| Receptacle Configuration | L5-30R, 5-15R, 5-20R |
| Operating Temperature - Minimum | 32 deg F |
| Package Quantity | 1 |
