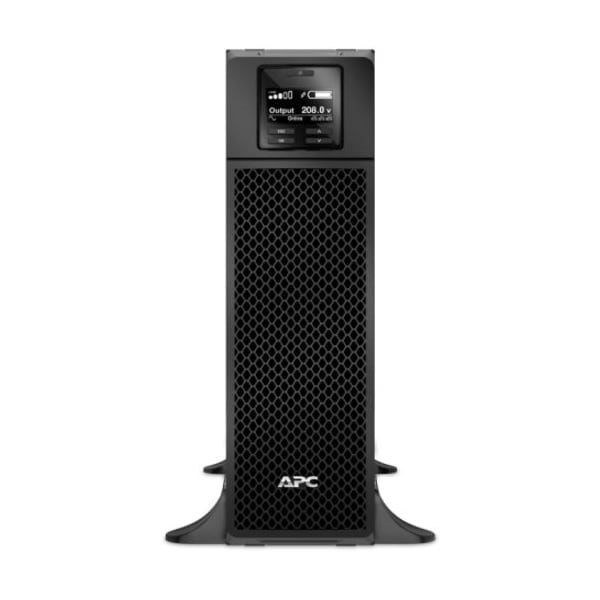

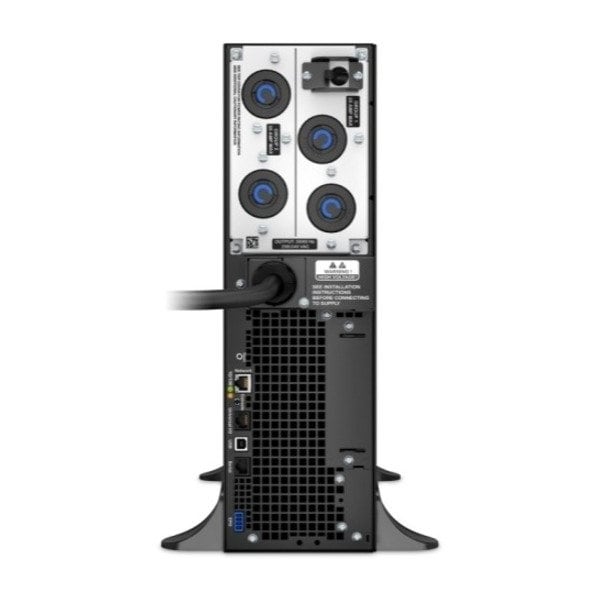

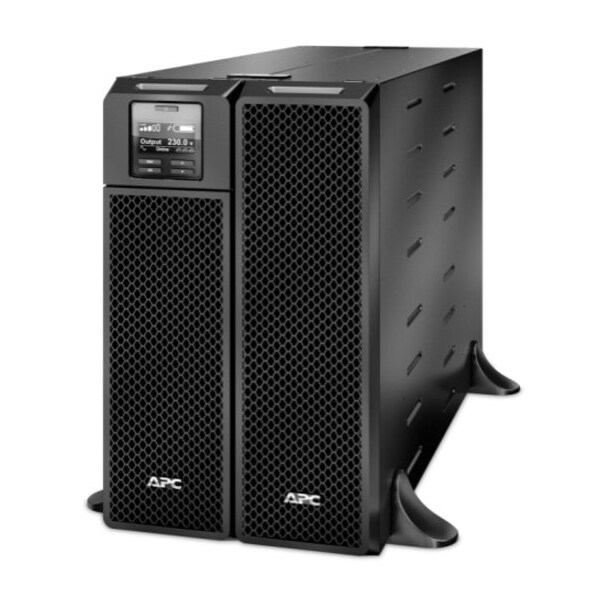

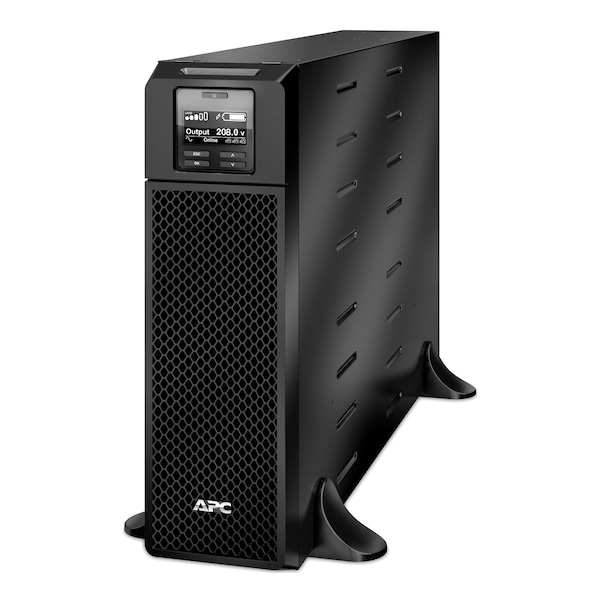

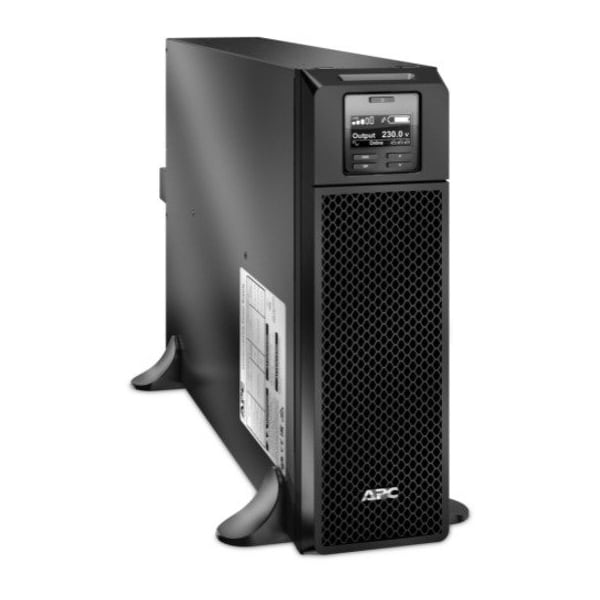

UPS System, 5000VA, Online/Double Conversion, Out: 208/240V AC In: 208/240V AC
| Item | UPS System |
|---|---|
| UPS Type | Online, Double Conversion |
| Power Rating | 5,000 VA |
| Mounting | Tower, Rack |
| Wattage | 4.25 kW |
| Input Voltage | 208/240V AC |
| Output Voltage | 208/240V AC |
| Backup Time (Half/Full Load) | 12.6 min/4.4 min |
| Outlet Type | Hardwired |
| Medical Grade | No |
| Number of Outlets | 4 |
| Hz | 40 to 70 Hz |
| Input Current | 24 A |
| Width | 28 in |
| Includes | Removable Support Feet, Temperature Probe, USB Cable |
| Transfer Time | 0 msec |
| Display Type | No Display |
| Fax/Modem Line Protection | No |
| VA Rating - UPS Systems | 5 kVA |
| Phase | Single |
| Standards | ENERGY STAR V2.0 (USA), NOM, RoHS |
| Height | 17 in |
| NEMA Plug Configuration | L6-30P |
| NEMA Receptacle Configuration | L6-30R, L6-20R |
| Automatic Volts Regulation | No |
| Depth | 28 in |
| Cord Length | 10 ft |
| Housing Color | Black |
| Capacity - Batteries | 5400 VA/4250 W |
| Battery Type | Lead Acid |
| Overall Width | 13 cm |
| Housing Material | Steel |
| Provided Equipment | CD with software || Documentation CD || Installation guide || Removable support feet || Temperature Probe || USB cable || Warranty card || Web/SNMP Management Card |
| Harmonic Distortion | Less than 2% |
| Product Certifications | ENERGY STAR V2.0 (USA) || NOM |
| Crest Factor | 0.125694444444444 |
| Input Frequency | 40 - 70 Hz auto-sensing |
| Mounting Location | front |
| Waveform Type | Sine Wave |
| Online Thermal Dissipation | 1,047 Btu/h |
| Typical Battery Recharge Time | 1 hr 30 min |
| Ambient Air Temperature For Operation | 0 to 40°C |
| Relative Humidity | 0-95 % non-condensing |
| Package Contents | Smart-UPS SRT 5000VA 208V , CD with software, Documentation CD, Installation guide, Removable support feet, Temperature probe, USB cable, Warranty card, Web/SNMP management card |
| Rated Power In Va | 5,400 VA |
| Storage Altitude | 0-50000 ft |
| Additional Specification | high density |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Battery Life | 3-5 year(s) |
| Operating Altitude | 0...10000 ft |
| Usb Compatible | Yes |
| Alarm | audible and visible alarms : prioritized by severity |
| Efficiency At Full Load | 100...275 V adjustable (half load) |
| Ambient Air Temperature For Storage | -15-45°C |
| Other Input Voltages | 240 V |
| Number Of Cables | 1 |
| Other Output Voltages | 240 V |
| Kw Rating | 4,800 W |
| Surge Energy Rating | 480 J |
| Ip Degree Of Protection | IP20 |
| Number of Battery & Surge Outlets | 4 |
| Acoustic Level | 55 dBA |
| Load Capacity | 5400 VA/4250 W |
| Free Slots | 1 |
| Battery Voltage | 192 V |
| Form Factor | Rack-mountable |
| Operating Temperature - Minimum | 32 deg F |
| Battery Recharge Time | 1 hr 30 min |
| Replacement Battery Part Number | APCRBC140 |
| Includes Battery | Battery Included |
| Operating Temperature - Maximum | 104 deg F |
| Manufacturer Warranty | 3 yr |
| Power Cord Length | 10 ft |
| External Battery Compatible | External Battery Pack Compatible |
| Input Current - Maximum | 24 A |
| External Battery Pack Part Number | SRT192BP2 |
| Output Ports Included | SNMP, USB |
| Automatic Voltage Regulation | No Automatic Voltage Regulation |
| Surge Suppression Rating | 480 J |
| Power Rating - Real | 4.8 kW |
| Package Quantity | 1 |
