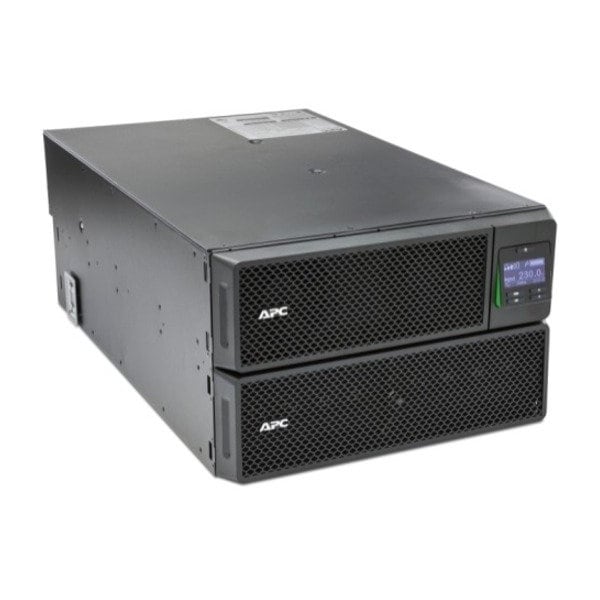

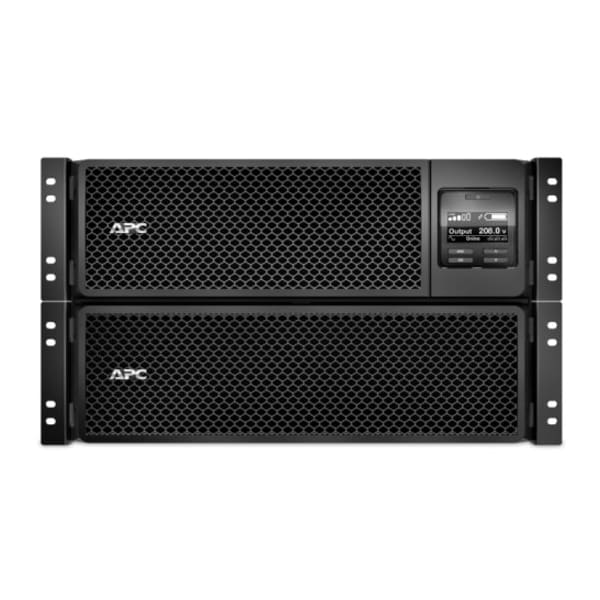

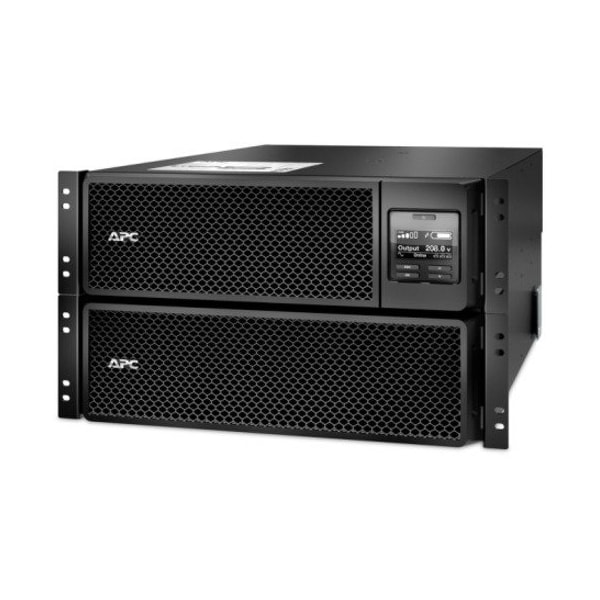

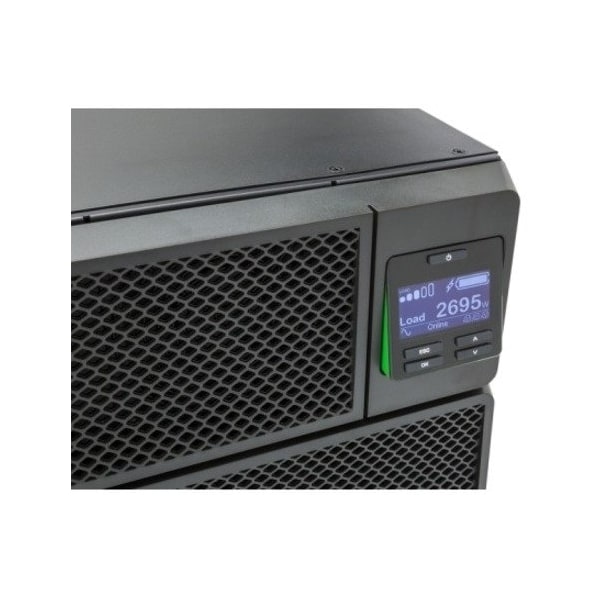

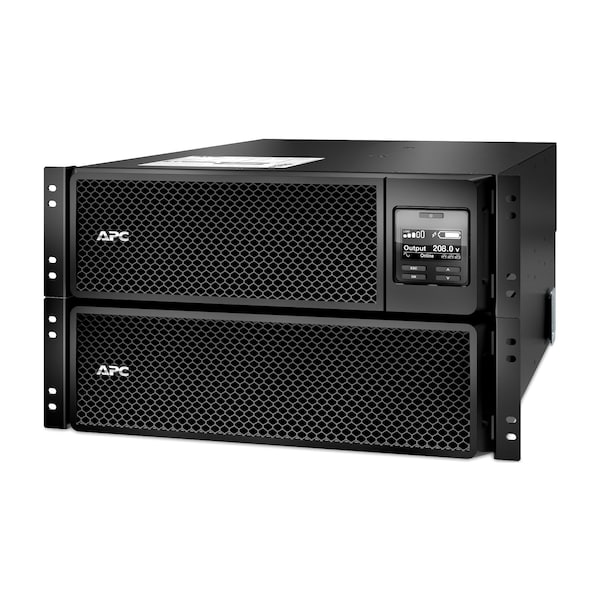

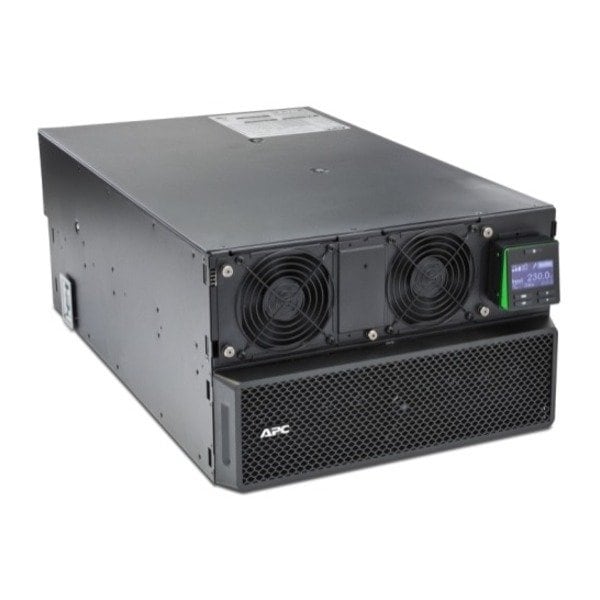

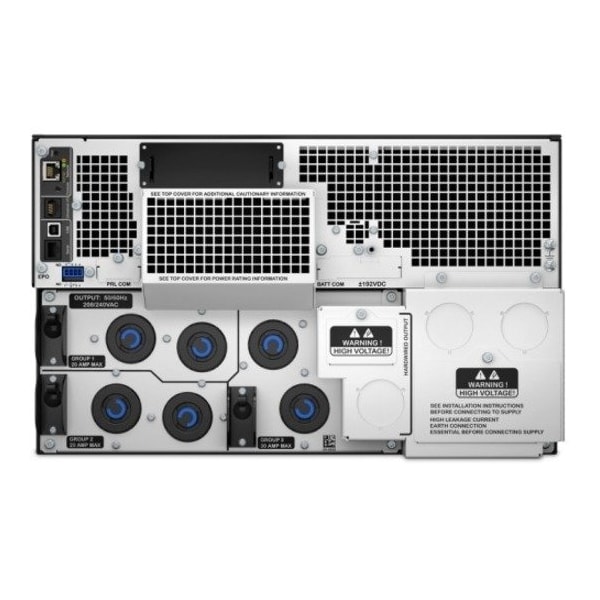

UPS System, 8000VA, Online/Double Conversion, Out: 208/240V AC In: 208/240V AC
| VA Rating - UPS Systems | 8 kVA |
|---|---|
| Item | UPS System |
| UPS Type | Online, Double Conversion |
| Power Rating | 8,000 VA |
| Mounting | Tower, Rack |
| Wattage | 8 kW |
| Input Voltage | 208/240V AC |
| Output Voltage | 208/240V AC |
| Backup Time (Half/Full Load) | 14.4 min/5.2 min |
| Outlet Type | Hardwired |
| Medical Grade | No |
| Number of Outlets | 7 |
| Depth | 28 in |
| Display Type | No Display |
| Hz | 40 to 70 Hz |
| Transfer Time | 0 msec |
| Width | 28 in |
| Automatic Volts Regulation | No |
| Phase | Single |
| Input Current | 47 A |
| Cord Length | No Cord |
| Fax/Modem Line Protection | No |
| Standards | ENERGY STAR V2.0 (USA), FCC Part 15 Class A, NOM, RoHS, UL 1778 |
| NEMA Receptacle Configuration | L6-30R, L6-20R |
| Height | 10 in |
| Includes | Rack Mounting Brackets, Rack Mounting Hardware, Rack Mounting Support Rails, Temperature Probe |
| NEMA Plug Configuration | Not Applicable |
| Housing Color | Black |
| Capacity - Batteries | 8000 VA/8000 W |
| Battery Type | Lead Acid |
| Overall Width | 43.2 cm |
| Housing Material | Steel |
| Harmonic Distortion | Less than 2% |
| Ip Degree Of Protection | IP20 |
| Online Thermal Dissipation | 1,712 Btu/h |
| Product Certifications | ENERGY STAR V2.0 (USA) || FCC part 15 class A || NOM || UL 1778 |
| Additional Specification | high density |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Ambient Air Temperature For Storage | -15-45°C |
| Mounting Location | front |
| Number Of Rack Unit | 6 U |
| Crest Factor | 0.125694444444444 |
| Acoustic Level | 55 dBA |
| Battery Life | 3-5 year(s) |
| Usb Compatible | Yes |
| Battery Voltage | +/-192 V |
| Kw Rating | 8,000 W |
| Alarm | audible and visible alarms : prioritized by severity |
| Rated Power In Va | 8,000 VA |
| Storage Altitude | 0-50000 ft |
| Other Input Voltages | 240 V |
| Free Slots | 1 |
| Relative Humidity | 0-95 % non-condensing |
| Other Output Voltages | 240 V |
| Operating Altitude | 0...10000 ft |
| Ambient Air Temperature For Operation | 0 to 40°C |
| Input Frequency | 40 - 70 Hz auto-sensing |
| Efficiency At Full Load | 100...275 V adjustable (half load) |
| Provided Equipment | CD with software || Documentation CD || Installation guide || Rack mounting hardware || Rack Mounting brackets || Rack Mounting support rails || Temperature Probe || USB cable || Warranty card || Web/SNMP Management Card |
| Surge Energy Rating | 480 J |
| Number of Battery & Surge Outlets | 6 |
| Rack Height | 6 U |
| Form Factor | Rack-mountable |
| Waveform Type | Sine Wave |
| Load Capacity | 8000 VA/8000 W |
| Typical Battery Recharge Time | 1 hr 30 min |
| Package Contents | Smart-UPS SRT 8000VA RM 208V , CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card |
| Operating Temperature - Maximum | 104 deg F |
| External Battery Compatible | External Battery Pack Compatible |
| Manufacturer Warranty | 3 yr |
| Power Rating - Real | 8 kW |
| Operating Temperature - Minimum | 32 deg F |
| Surge Suppression Rating | 480 J |
| Output Ports Included | SNMP, USB |
| Input Current - Maximum | 47 A |
| External Battery Pack Part Number | SRT192RMBP2 |
| Power Cord Length | Not Applicable |
| Includes Battery | Battery Included |
| Battery Recharge Time | 1 hr 30 min |
| Replacement Battery Part Number | APCRBC140, SRT192BP2US, SRT192RMBPUS |
| Automatic Voltage Regulation | No Automatic Voltage Regulation |
| Package Quantity | 1 |
