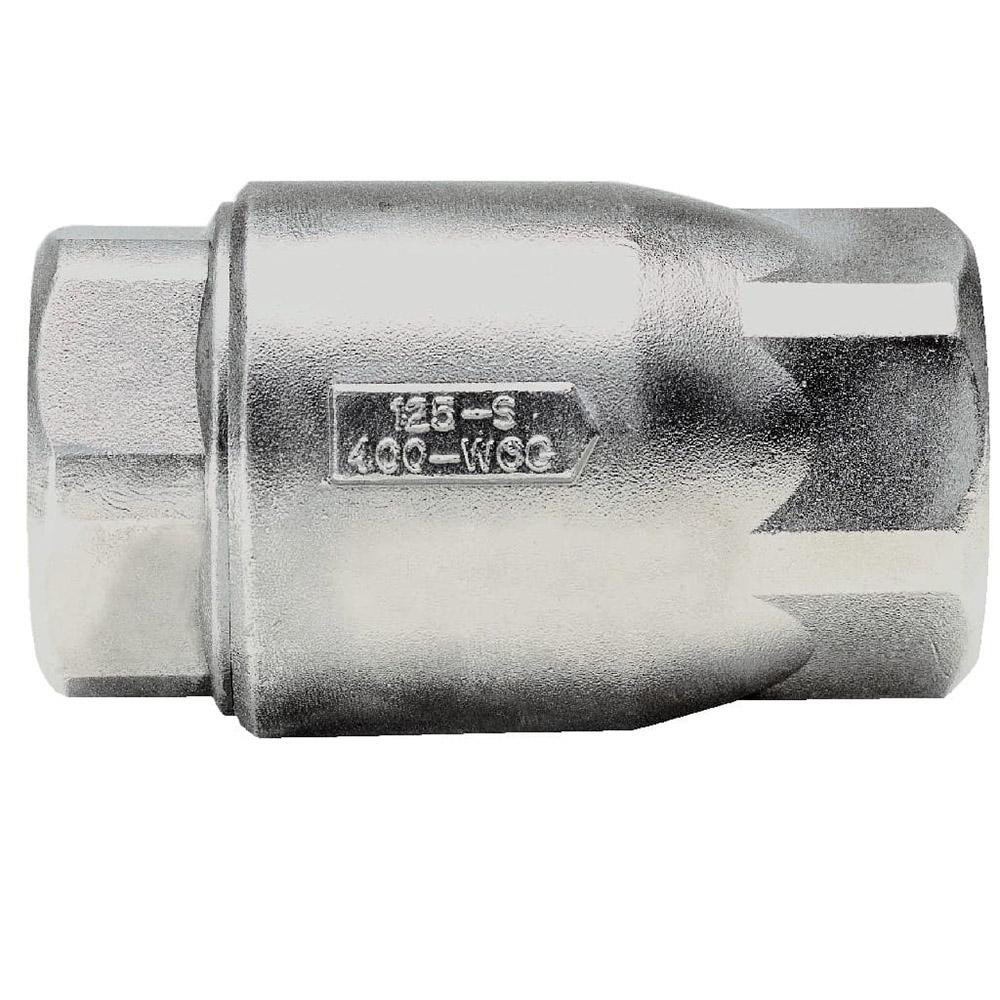

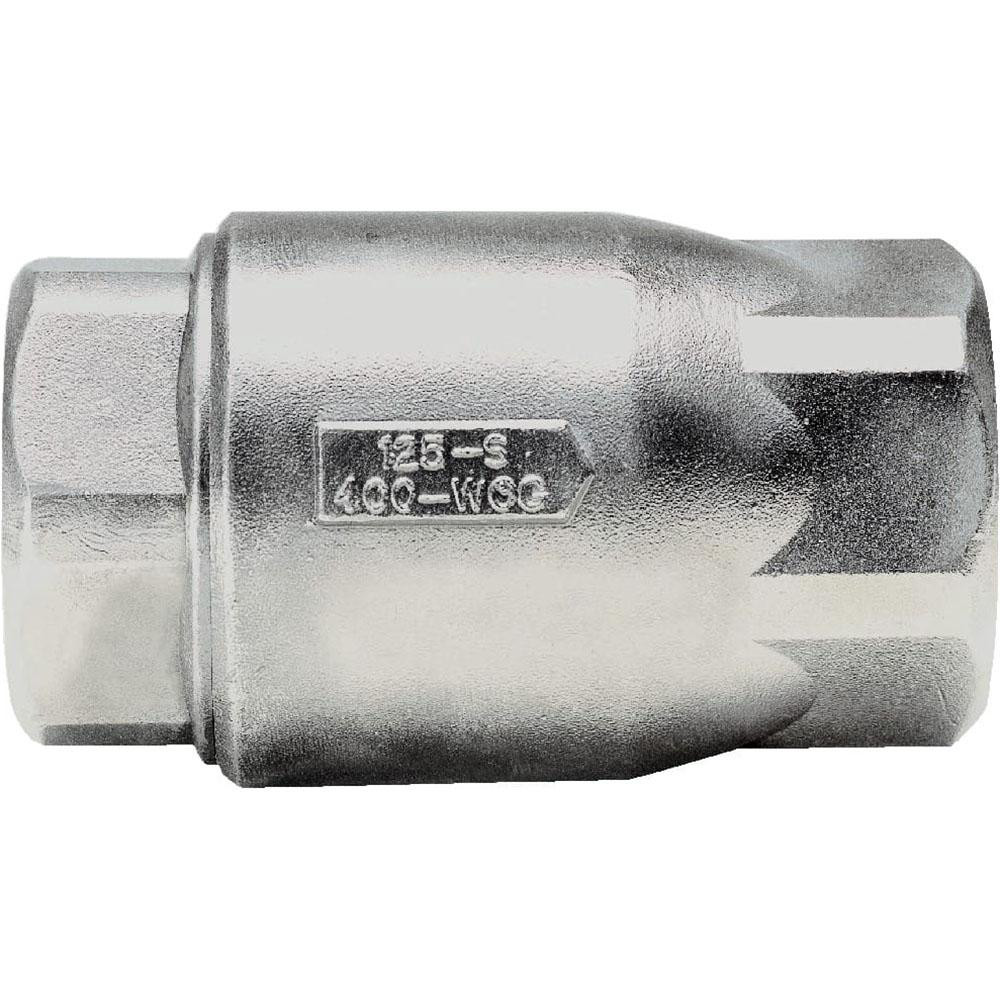

In-Line
| Design | In-Line |
|---|---|
| End Connection | FNPT x FNPT |
| Crack Pressure (psi) | 0.50 |
| Pipe Size | 1/4 |
| Maximum Working Pressure | 400 psi |
| Material Grade | ASTM A351 CF8M |
| Special Item Information | Standard Viton Seat |
| Width (Inch) | 1-1/8 |
| Cv Rating | 0.470 |
| Width (Decimal Inch - 4 Decimals) | 1.1250 |
| Material | Stainless Steel |
| Maximum Temperature (F) ( - 0 Decimals) | 350.00 |
| WOG Rating (psi) | 400 |
| Overall Length (Decimal Inch) | 2.3120 |
| Spring Material | Stainless Steel |
| UNSPSC Code | 40141622 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 46479648 |
