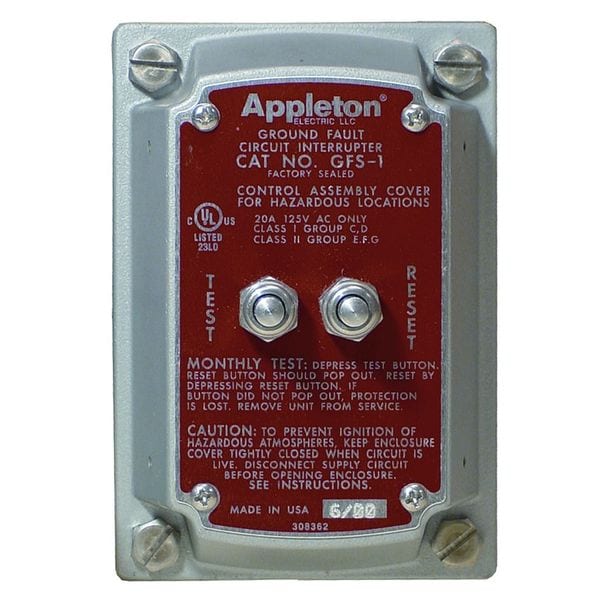

Protección especial para ubicaciones peligrosas con capacidad de 20 amperios y voltaje de 120/240VAC. Fabricado por Appleton Electric, líder en soluciones de seguridad eléctrica.
| Item | GFCI Cover |
|---|---|
| Voltage | 120/240V AC |
| Number of Wires | Not Applicable |
| Number of Poles | Not Applicable |
| HP | 1 HP |
| Amps | 20 |
| Material | Copper-Free Aluminum |
| Standards | UL 1203, UL 943 |
| Housing Material | Copper Free Aluminum |
| Electrical Connection Type | Straight Blade |
| Voltage Rating | 125V AC |
| Insulation Material | Fiberglass-Reinforced Polyester |
| Hub Diameter | Not Applicable |
| Overall Width | 3-1/2 in |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Current Rating | 20 A |
| Resistance Properties | Dust Ignition Proof, Explosion Proof |
| Overall Height | 5.09 in |
| Hub Type | Not Applicable |
| Housing Material Finish | Epoxy Powder Coated |
| Cover Type | Screw-On Cover |
| For Environment | Corrosive, Damp |
| Overall Depth | 4-1/4 in |
| Malleable Iron Material and Finish | Mounting boxes are malleable iron with a triple coat finish of zinc electroplate chromate and epoxy powder coat |
| Amperage | 20 |
| Mounting Box Entries | Dead-End |
| Insulator Block Material | Glass-filled reinforced polyester |
| Hazardous Area Classification | Class I, Groups C, D; Class I, Division 2, Group B; Class I, Zone 1, Group IIB; Class I, Zone 2, Group IIB + H2; Class II, Groups F, G; Class III; NEMA 3RX, 7CD, 9FG |
| Aluminum Material and Finish | Standard receptacle covers and (optional aluminum mounting boxes) are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat |
| Plug Cable Diameter | .538- .639 |
| Package Quantity | 1 |
