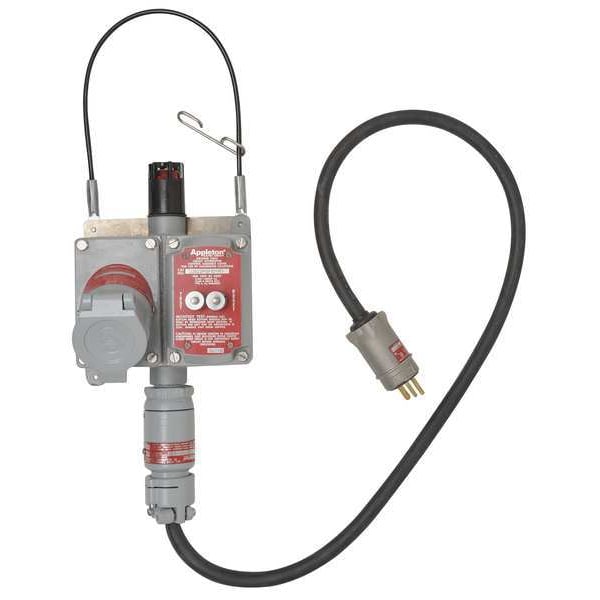

Esta toma a prueba de explosión GFCI de Appleton Electric es ideal para entornos peligrosos. Con capacidad de 20 amperios y 120 VAC, cumple con los estándares de seguridad necesarios.
| Item | Portable GFCI Receptacle |
|---|---|
| Voltage | 120 V AC |
| NEMA Rating | 3, 3R, 7CD, 9FG |
| Number of Wires | 2 |
| Number of Poles | 3 |
| Amps | 20 |
| Material | Copper-Free Aluminum |
| Hz | 60 |
| Finish | Baked Gray Epoxy Clad Finish |
| Mounting Box | Copperfree Aluminum |
| Standards | UL Listed |
| Current Rating | 20 A |
| Hazardous Location Specification | Class I, Div 1, Group B, C, D, Class I, Div 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Power Indicating Light | Yes |
| Contact Material | Copper |
| Hub Type | Feed Through, Dead End |
| Includes Mounting Hardware | Yes |
| Voltage Rating | 125/250V AC |
| Housing Material Finish | Zinc Electroplated, Epoxy Coated |
| Housing Material | Malleable Iron |
| For Maximum Cable Diameter | 0.639 in |
| GFCI | Yes |
| Insulation Material | Glass-Filled Reinforced Polyester |
| For Environment | Corrosive |
| Horsepower Rating | 1 HP |
| NEMA Enclosure Rating | 3, 3R |
| For Minimum Cable Diameter | 0.538 in |
| Features | ECP Plug Fits any Standard Non-Explosionproof Receptacle (NEMA 5-20R, or 6-20R) as Well as U-Line(TM) Explosionproof Receptacles, Energized Receptacle Contacts Deeply Recessed, U-Line(TM) EFSR-K Receptacle Covers are UL Classified When Used with Killark(TM) SWB Series Mounting Boxes |
| Aluminum Material and Finish | Standard receptacle covers and (optional aluminum mounting boxes) are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat |
| Mounting Box Entries | Dead-End |
| Insulator Block Material | Glass-filled reinforced polyester |
| Horsepower Ratings | 1, 2 |
| Plug Cable Diameter | .538- .639 |
| Amperage | 20 |
| Hazardous Area Classification | Class I, Division 1 Groups B, C, D; Class I, Division 2 Groups B, C, D; Class II, Division 1 and 2 Groups F, G; Class III; NEMA 3, 3R |
| Malleable Iron Material and Finish | U-Line„ M series mounting boxes and receptacle covers are malleable iron with a triple coat finish of zinc electroplate chromate and epoxy powder coat |
| Package Quantity | 1 |
