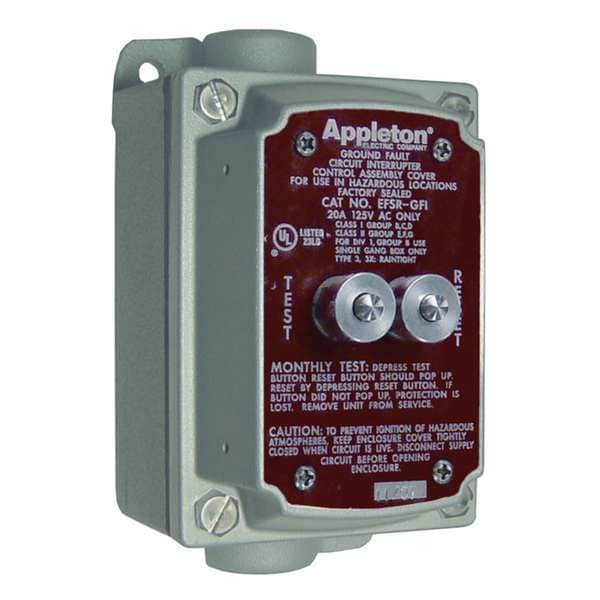

Caja y cubierta GFCI peligrosa de 2W 3P 20A 120VAC 5-20R de Appleton Electric, diseñada para garantizar la seguridad en entornos peligrosos. Cumple con los estándares de calidad y protección eléctrica.
| Item | GFCI Cover and Box |
|---|---|
| Voltage | 120V AC |
| NEMA Rating | 3, 3R, 7BCD, 9EFG |
| Number of Wires | 2 |
| Number of Poles | 3 |
| NEMA Type | 5-20R |
| Amps | 20 |
| Material | Malleable Iron |
| Hub Size | 1 in |
| Hz | 60 |
| Standards | UL 1203, UL 943 |
| Screws | Stainless Steel |
| Finish | Baked Gray Epoxy Clad Finish |
| Hub Style | Feed-Thru |
| Mounting Box | 1 Gang, Malleable Iron |
| Product Type | GFCI Box Unit and Cover |
| Electrical Connection Type | Straight Blade |
| Housing Material | Copper Free Aluminum |
| Hub Diameter | 1 in |
| Hub Type | Feed Through |
| Overall Height | 6-1/2 in |
| Resistance Properties | Dust Ignition Proof, Explosion Proof |
| Current Rating | 20 A |
| For Environment | Corrosive, Damp |
| Housing Material Finish | Epoxy Powder Coated |
| Overall Width | 3-1/2 in |
| Overall Depth | 5.64 in |
| Voltage Rating | 125V AC |
| Insulation Material | Fiberglass-Reinforced Polyester |
| Cover Type | Screw-On Cover |
| Hazardous Location Specification | Class I, Div 1, Group B, C, D, Class I, Div 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| NEC Certifications and Compliances | Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 7CD, 9EFG |
| Option Materials | 1- or 2-gang copperfree (4/10 of 1% max.) aluminum bodies and covers available. See catalog pages for details |
| Standard Finishes | Tumbler switches have a triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat |
| Standard Materials | Malleable iron body and covers. Nylon 6/6 handle. Corrosion resistant stainless steel nameplate mounting bracket (optional) |
| Nameplate Mounting Bracket | Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog. |
| Package Quantity | 1 |
