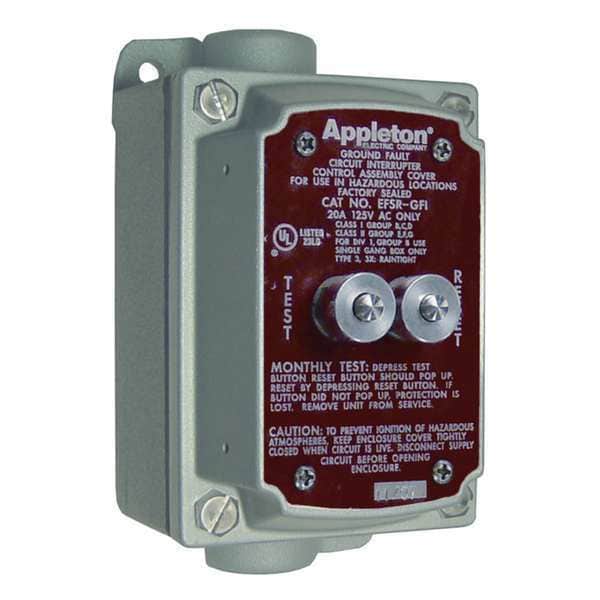

2W 3P 20A Hazardous GFCI Cover & Box 120VAC 5-20R
| Item | GFCI Cover and Box |
|---|---|
| Voltage | 120V AC |
| NEMA Rating | 3, 3R, 7BCD, 9EFG |
| Number of Wires | 2 |
| Number of Poles | 3 |
| NEMA Type | 5-20R |
| Amps | 20 |
| Material | Malleable Iron |
| Hz | 60 |
| Screws | Stainless Steel |
| Standards | UL 1203, UL 943 |
| Hub Style | Feed-Thru |
| Finish | Baked Gray Epoxy Clad Finish |
| Mounting Box | 1 Gang, Malleable Iron |
| Hub Size | 1/2 in |
| Product Type | GFCI Box Unit and Cover |
| For Environment | Corrosive, Damp |
| Overall Height | 6-1/2 in |
| Electrical Connection Type | Straight Blade |
| Hub Diameter | 1/2 in |
| Voltage Rating | 125V AC |
| Overall Depth | 5.64 in |
| Resistance Properties | Dust Ignition Proof, Explosion Proof |
| Hub Type | Feed Through |
| Cover Type | Screw-On Cover |
| Current Rating | 20 A |
| Hazardous Location Specification | Class I, Div 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Housing Material | Copper Free Aluminum |
| Overall Width | 3-1/2 in |
| Insulation Material | Fiberglass-Reinforced Polyester |
| Housing Material Finish | Epoxy Powder Coated |
| Amperage | 20 |
| Insulator Block Material | Glass-filled reinforced polyester |
| Mounting Box Entries | Dead-End |
| Plug Cable Diameter | .538- .639 |
| Horsepower Ratings | 1, 2 |
| Hazardous Area Classification | Class I, Division 1 Groups B, C, D; Class I, Division 2 Groups B, C, D; Class II, Division 1 and 2 Groups F, G; Class III; NEMA 3, 3R |
| Malleable Iron Material and Finish | U-Line„ M series mounting boxes and receptacle covers are malleable iron with a triple coat finish of zinc electroplate chromate and epoxy powder coat |
| Aluminum Material and Finish | Standard receptacle covers and (optional aluminum mounting boxes) are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat |
| Package Quantity | 1 |
