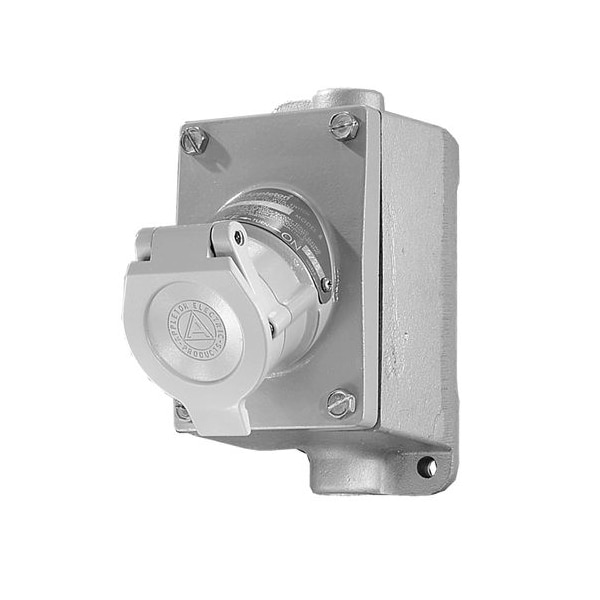

Este receptáculo para ubicaciones peligrosas de 2W 3P 20A con voltaje de 240VAC y conector 6-20R es ideal para entornos industriales peligrosos. Cumple con las normativas de seguridad y ofrece una alta durabilidad.
| Item | Receptacle |
|---|---|
| Voltage | 240V AC |
| NEMA Rating | 3RX |
| Number of Wires | 2 |
| Number of Poles | 3 |
| NEMA Type | 6-20R |
| Amps | 20 |
| Material | Copper-Free Aluminum |
| Hub Size | 1/2 in |
| Hub Style | Dead-end |
| Standards | UL Listed |
| Mounting Box | 1 Gang, Malleable Iron |
| Finish | Triple Coat Epoxy Coating |
| Hz | 60 |
| Features | Dead Front Design: Receptacle is Not Energized Until Plug is Fully Inserted and Switch is Engaged |
| GFCI | Yes |
| Resistance Properties | Dust Ignition Proof, Explosion Proof |
| For Minimum Cable Diameter | 0.538 in |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| NEMA Receptacle Configuration | 6-20R |
| Insulation Material | Glass-Filled Reinforced Polyester |
| Housing Material Finish | Zinc Electroplated, Chromate Finish; Epoxy Powder Coated |
| NEMA Enclosure Rating | 9FG, 7CD, 3RX |
| Current Rating | 20 A |
| For Maximum Cable Diameter | 0.639 in |
| Hub Diameter | 1/2 in |
| Circuit Breaker | Yes |
| Housing Material | Copper Free Aluminum |
| Horsepower Rating | 2 HP |
| Voltage Rating | 250V AC |
| Hub Type | Dead End |
| For Environment | Hazardous Location |
| Number of Gangs | 1 |
| Amperage | 20 |
| Mounting Box Entries | Dead-End |
| Plug Cable Diameter | .538- .639 |
| Insulator Block Material | Glass-filled reinforced polyester |
| Malleable Iron Material and Finish | Mounting boxes are malleable iron with a triple coat finish of zinc electroplate chromate and epoxy powder coat |
| Hazardous Area Classification | Class I, Groups C, D; Class I, Division 2, Group B; Class I, Zone 1, Group IIB; Class I, Zone 2, Group IIB + H2; Class II, Groups F, G; Class III; NEMA 3RX, 7CD, 9FG |
| Aluminum Material and Finish | Standard receptacle covers and (optional aluminum mounting boxes) are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat |
| Package Quantity | 1 |
