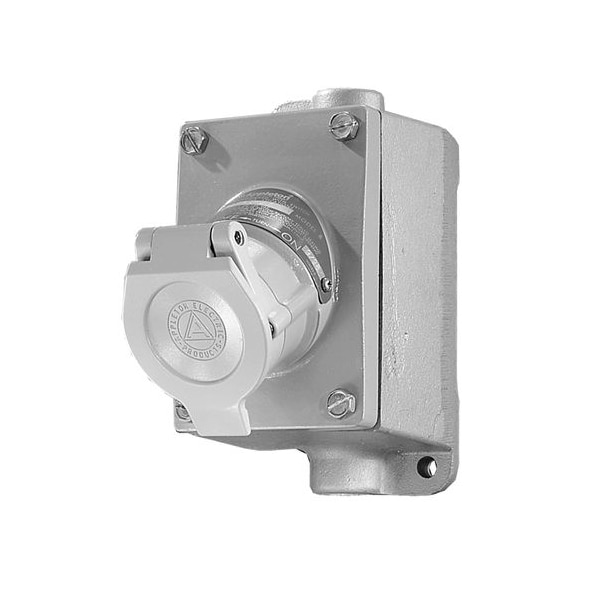

Este receptáculo de ubicación peligrosa de 2W 3P 20A 240VAC 6-20R de Appleton Electric es ideal para entornos industriales que requieren equipos resistentes y seguros. Cumple con todas las normativas de seguridad y está diseñado para un rendimiento óptimo.
| Item | Receptacle |
|---|---|
| Voltage | 240V AC |
| NEMA Rating | 3RX |
| Number of Wires | 2 |
| Number of Poles | 3 |
| NEMA Type | 6-20R |
| Amps | 20 |
| Material | Copper-Free Aluminum |
| Standards | UL Listed |
| Mounting Box | 1 Gang, Malleable Iron |
| Hz | 60 |
| Finish | Triple Coat Epoxy Coating |
| Hub Size | 1 in |
| Hub Style | Feed-Thru |
| Features | Dead Front Design: Receptacle is Not Energized Until Plug is Fully Inserted and Switch is Engaged |
| Horsepower Rating | 2 HP |
| GFCI | Yes |
| Housing Material | Copper Free Aluminum |
| For Maximum Cable Diameter | 0.639 in |
| Housing Material Finish | Zinc Electroplated, Chromate Finish; Epoxy Powder Coated |
| For Environment | Hazardous Location |
| NEMA Enclosure Rating | 9FG, 7CD, 3RX |
| For Minimum Cable Diameter | 0.538 in |
| Circuit Breaker | Yes |
| NEMA Receptacle Configuration | 6-20R |
| Hub Diameter | 1 in |
| Number of Gangs | 1 |
| Resistance Properties | Dust Ignition Proof, Explosion Proof |
| Voltage Rating | 250V AC |
| Insulation Material | Glass-Filled Reinforced Polyester |
| Current Rating | 20 A |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Hub Type | Feed Through |
| Package Quantity | 1 |
