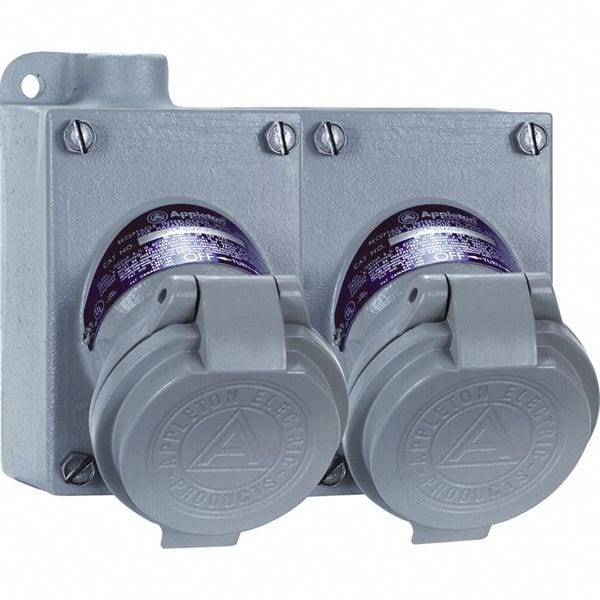

Este receptáculo a prueba de explosiones de Appleton Electric cuenta con 2 contactos, 3 polos y una capacidad de 20 amperios a 120/240VAC. Cumple con estándares de seguridad para entornos peligrosos.
| Item | Pin and Sleeve Receptacle |
|---|---|
| Voltage | 120/240V AC |
| Number of Wires | 2 |
| Number of Poles | 3 |
| HP | 1 HP |
| Amps | 20 |
| Material | Copper-Free Aluminum Cover, Malleable Iron Body |
| Hub Size | 1/2 in |
| Mounting Box | 2-Gang |
| Hub Style | Dead-end |
| Standards | UL Listed |
| Screws | Captive Hex Head Slotted, Stainless Steel |
| Finish | Epoxy Powder Coated |
| GFCI | Yes |
| Maximum Wire Size | Not Applicable |
| Current Rating | 20 A |
| Connection Orientation | 60 Degrees Elbow |
| Flange Diameter | Not Applicable |
| IP Rating | Not Rated |
| Shrouded | Yes |
| Cap Type | Spring-Loaded Cap |
| Includes Mounting Hardware | Yes |
| For Maximum Cable Diameter | 0.639 in |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D |
| Grounding | Grounded |
| Housing Material | Malleable Iron |
| Contact Material | Copper |
| Power Indicating Light | No |
| Voltage Rating | 125 to 250V AC, 18V DC |
| Flange Type | Non-Flanged |
| Flange Height | Not Applicable |
| Flange Width | Not Applicable |
| Face Diameter | 2.63 in |
| Market | Industrial |
| Horsepower Rating | 1 HP |
| UL 94 Flammability Rating | Not Rated |
| Resistance Properties | Corrosion Resistant |
| Number of Gangs | 2 |
| Minimum Wire Size | Not Applicable |
| Features | Delayed Action Construction: Insert Plug Partially Rotate Slide on Front of Receptacle and Insert Plug Fully |
| Insulation Material | Fiberglass-Reinforced Polyester |
| Hub Type | Dead End |
| Switch Rated | Not Applicable |
| NEMA Enclosure Rating | Not Rated |
| Housing Material Finish | Epoxy Powder Coated |
| Reverse Service | No |
| Housing Color | Gray |
| Wire Connection Type | Spring Clamp Terminals |
| For Minimum Cable Diameter | 0.538 in |
| Phase | Single |
| Grounding Style | Not Applicable |
| Hub Diameter | 1/2 in |
| Horsepower Ratings | 1 |
| Materials and Finishes | Receptacle cover and CPP plug is copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Mounting box is malleable iron with triple-coat. Insulating blocks are fiberglass reinforced polyester. |
| Amperage | 20 |
| Hazardous Area Classification | Class I, Division 1 and 2, Groups C, D |
| Mounting Box Entries | Dead-End |
| Plug Cable Diameter | .538- .639 |
| Package Quantity | 1 |
