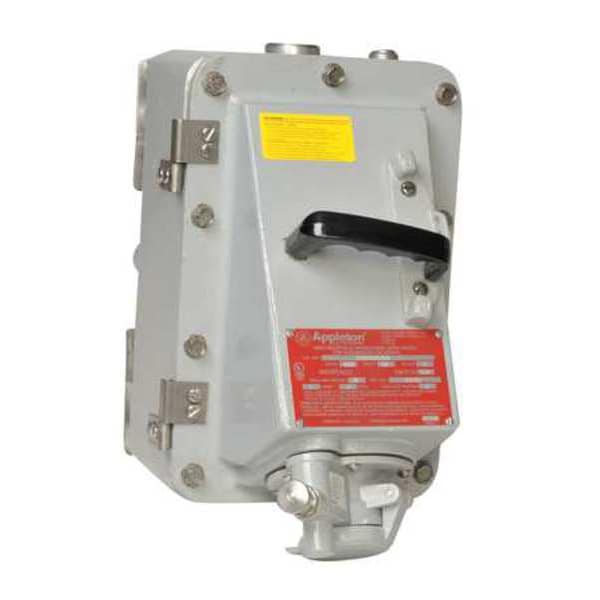

2W 3P 30A Hazardous Location Receptacle 600VAC
| Item | Receptacle |
|---|---|
| Voltage | 600V AC |
| NEMA Rating | 3, 3R, 4, 4X, 7CD, 9FG |
| Number of Wires | 2 |
| Number of Poles | 3 |
| Circuit Breaker Amp Rating | 30 A |
| HP | 5 HP |
| Amps | 30 |
| Material | Copper-Free Aluminum |
| Hz | 60 |
| Circuit Breaker | Yes |
| Mounting Box | Copperfree Aluminum |
| Hub Size | 3/4 in, 1-1/2 in |
| Standards | E10784, E313360(EBR), E79132, UL 1010 (UL 1203), UL 1682, UL 894 |
| Finish | Epoxy Powder Coated |
| For Environment | Hazardous Location |
| Includes Mounting Hardware | Yes |
| Enclosure Lock Type | Padlockable |
| Fuse Type | Not Applicable |
| For Minimum Cable Diameter | Not Applicable |
| Disconnect Switch | No |
| Housing Material | Copper Free Aluminum |
| Fuse Protection | Not Applicable |
| Horsepower Rating | 5 HP |
| Phase | Single |
| Grounding | Grounded |
| Locking Handle | Yes |
| Handle Type | Knob |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Current Rating | 30 A |
| Hub Diameter | 1-1/2 in |
| Wire Connection Type | Quick-Disconnect Terminals |
| Maximum Wire Size | Not Applicable |
| Voltage Rating | 600V AC |
| Contact Material | Brass |
| Circuit Breaker Type | FDB 600V AC |
| Resistance Properties | Waterproof |
| Compatible Plug Manufacturer Part Number | Not Applicable |
| Compatible with Series | Powertite |
| For Maximum Cable Diameter | Not Applicable |
| Hub Type | Feed Through |
| Includes | Screw Cap |
| Number of Gangs | 1 |
| Housing Material Finish | Epoxy Powder Coated |
| Insulation Material | Fiberglass-Reinforced Polyester |
| NEMA Enclosure Rating | 9FG, 3, 4X, 3R, 4, 7CD |
| Hazardous Area Classification | EBR Receptacle: Class I, Division 1 and 2, Groups B, C, D Class II, Division 1 and 2, Groups F, G Class III NEMA 3, 3R, 4, 4X, 7CD, 9FG?DBR Receptacle: Class II, Division 1 and 2, Groups F, G Class III NEMA 3, 3R, 4, 4X, 9FG |
| Plug Cable Diameter | 30 Amp: 0.500 to 1.125#8221;, 60 Amp: 0.500 to 1.375#8221;, 100 Amp: 0.875 to 1.906#8221;, 150 Amp: 1.09#8221; to 2.187#8221; |
| Amperage | 30, 60, 100 or 150 |
| Horsepower Ratings | 1, 2, 1.5, 10, 15, 20, 25, 3, 30, 40, 5, 50, 60, 7.5, 75 |
| Mounting Box Entries | Feed-Thru |
| Materials and Finishes | Receptacles, mounting box, covers and plug housings are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Insulating blocks are fiber glass reinforced polyester. |
| Package Quantity | 1 |
