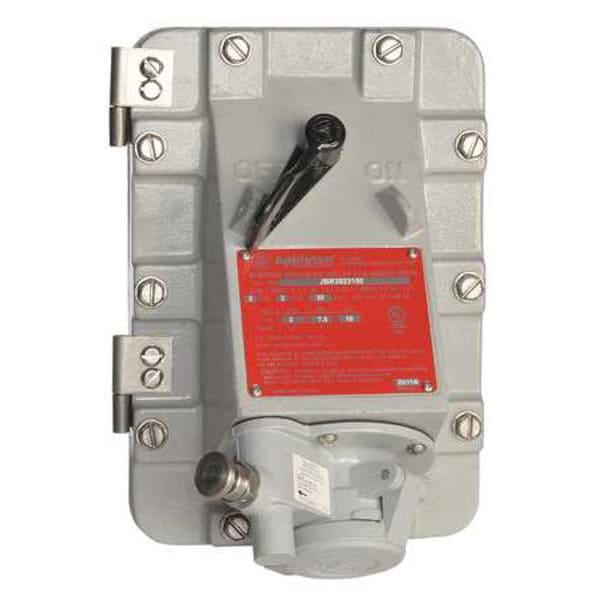

2W 3P 30A Hazardous Location Switched Receptacle 600VAC
| Item | Receptacle |
|---|---|
| Voltage | 600V AC |
| NEMA Rating | 3, 3R, 4, 4X, 7BCD, 9FG |
| Number of Wires | 2 |
| Number of Poles | 3 |
| Circuit Breaker Amp Rating | Not Applicable |
| HP | 20 HP |
| Amps | 30 |
| Material | Copper-Free Aluminum |
| Finish | Epoxy Powder Coated |
| Standards | CSA C22.2 No. 182.1, CSA C22.2 No. 4, CSA Certified 038644, UL 1010 (UL 1203), UL 1682, UL 894, UL E10784 |
| Mounting Box | Copperfree Aluminum |
| Hub Size | 1-1/2 in |
| Hz | 50-400 |
| NEMA Enclosure Rating | 9FG, 3, 4X, 3R, 4, 7BCD |
| Enclosure Lock Type | Not Applicable |
| Circuit Breaker Type | Not Applicable |
| For Maximum Cable Diameter | Not Applicable |
| Grounding | Grounded |
| Hub Type | Feed Through |
| Compatible with Series | Powertite |
| Fuse Type | Not Applicable |
| Hub Diameter | 1-1/2 in |
| For Minimum Cable Diameter | Not Applicable |
| Overall Depth | 10.28 in |
| Number of Gangs | 1 |
| Voltage Rating | 240/480/600V AC |
| Maximum Wire Size | Not Applicable |
| Housing Material | Copper Free Aluminum |
| Fuse Protection | Non-Fused |
| Horsepower Rating | 20 HP |
| Compatible Plug Manufacturer Part Number | Not Applicable |
| Locking Handle | No |
| Includes Mounting Hardware | Yes |
| Wire Connection Type | Quick-Disconnect Terminals |
| Housing Material Finish | Epoxy Powder Coated |
| Overall Height | 11-3/4 in |
| Circuit Breaker | No |
| Disconnect Switch | Yes |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Current Rating | 30 A |
| Hertz | 50-400 Hz |
| Hazardous Area Classification | Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups F, G; Class III NEMA 3, 3R, 4, 4X, 7BCD, 9FG |
| Mounting Box Entries | Dead-End |
| Materials and Finishes | Receptacle housing and mounting box is copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Stainless steel captive cover bolts, mounting feet and hinges. |
| Horsepower | 7.5, 10, 15, 20, 25, 30 |
| Amperage | 30 or 60 |
| Plug Cable Diameter | 30 Amp: 0.500 to 1.125#8221;; 60 Amp: 0.500 to 1.375#8221; |
| Package Quantity | 1 |
