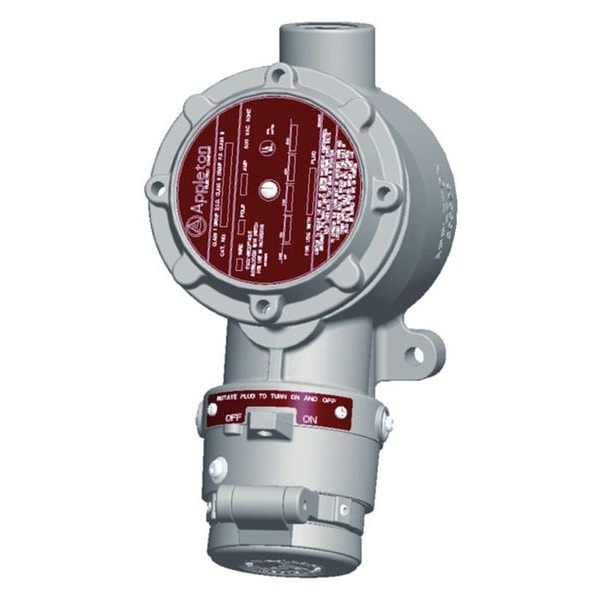

Este receptáculo para ubicaciones peligrosas de 60 amperios y 600VAC es ideal para entornos industriales y peligrosos. Cuenta con 3 cables y 4 polos para una conexión segura y fiable.
| Item | Receptacle with Disconnect Switch |
|---|---|
| Voltage | 600V AC |
| NEMA Rating | 3, 3R, 4, 4X, 7CD, 9FG |
| Number of Wires | 3 |
| Number of Poles | 4 |
| Circuit Breaker Amp Rating | Not Applicable |
| HP | 30 HP |
| Amps | 60 |
| Material | Copper-Free Aluminum |
| Hub Size | 1-1/2 in |
| Finish | Epoxy Powder Coated |
| Hz | 60 |
| Mounting Box | Copperfree Aluminum |
| Standards | CSA C22.2 No. 159, CSA C22.2 No. 25, CSA C22.2 No. 30, CSA Certified 025875, UL 1010 (UL 1203), UL 1682, UL 894, UL E10784 |
| Housing Material | Copper Free Aluminum |
| Horsepower Rating | 30 HP |
| Phase | Three |
| For Minimum Cable Diameter | Not Applicable |
| Voltage Rating | 120/240/480/600V AC |
| For Environment | Hazardous Location |
| Minimum Wire Size | 6 AWG |
| NEMA Enclosure Rating | 9FG, 3, 4X, 3R, 4, 7CD |
| Grounding | Grounded |
| Compatible with Series | Powertite |
| Circuit Breaker | No |
| Circuit Breaker Type | Not Applicable |
| Enclosure Lock Type | Not Applicable |
| Insulation Material | Fiberglass-Reinforced Polyester |
| Compatible Plug Manufacturer Part Number | Not Applicable |
| Number of Gangs | 1 |
| Overall Width | 6.9 in |
| Fuse Type | Not Applicable |
| Current Rating | 60 A |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Hub Diameter | 1-1/2 in |
| Fuse Protection | Non-Fused |
| Overall Depth | 8.13 in |
| Disconnect Switch | Yes |
| Maximum Wire Size | Not Applicable |
| For Maximum Cable Diameter | Not Applicable |
| Hub Type | Feed Through |
| Overall Height | 15.2 in |
| Wire Connection Type | Quick-Disconnect Terminals |
| Locking Handle | No |
| Includes Mounting Hardware | Yes |
| Amperage | 30, 60 or 100 |
| Plug Cable Diameter | 30 Amp: 0.500 to 1.125#8221;, 60 Amp: 0.500 to 1.375#8221;, 100 Amp: 0.875#8221; to 1.906#8221; |
| Mounting Box Entries | Feed-Thru |
| Hazardous Area Classification | Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups F, G; Class III; NEMA 3, 3R, 4, 4X, 7CD, 9FG |
| Wire Range | 30 Amp: #10-#8, 60 Amp: #6-#4, 100 Amp: #2-1/0 |
| Materials and Finishes | Receptacles, mounting box, covers and plug housings are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Insulating blocks are fiber glass reinforced polyester. |
| Package Quantity | 1 |
