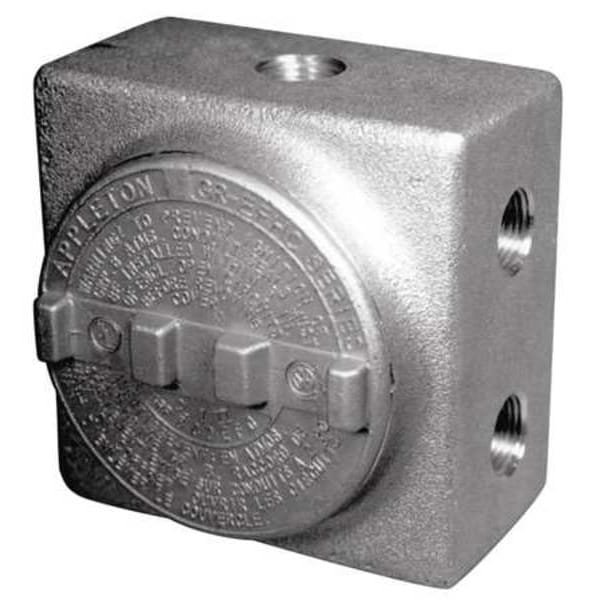

Conduit Outlet Body, 7 Hub, 1 In.
| Item | Conduit Outlet Body |
|---|---|
| Conduit Outlet Body Type | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 1 in |
| Series | For Standard Body |
| Conduit Outlet Body Material | Copper Free Aluminum |
| Conduit Outlet Body Style | Hub |
| Material | Aluminum |
| Conduit Outlet Body Capacity | 29 cu in |
| Conduit Outlet Body Hub Size | 1 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | Threaded IMC |
| Special Features | 7 Hub. 2 On Each Side, 1 On Top and Bottom, 1 On Back |
| Color | Gray |
| Back Type | Flat |
| Conduit Outlet Hub Size | 1 in |
| Standards | CSA C22.2 No. 25, CSA C22.2 No. 30, UL 886, UL Listed for Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III |
| Form | Form 1 |
| Body Style | Hub |
| Hazardous Location Rating | Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, Class III |
| Finish | Powder Coated |
| Compatible Cover | GRK1 |
| Hub Style | Threaded |
| Body Capacity | 29 cu in |
| Overall Height | 3-1/2 in |
| Thread Type | NPT |
| Gasket Included | Yes |
| Connection Type | Threaded |
| Compatible Conduit Type | Threaded IMC |
| Number of Hubs | 7 |
| Thread Size | 1 in |
| Body Type | Conduit Outlet Body |
| Compatible Conduit Trade Size | 1 in |
| Connection Orientation | Multi-Angle |
| Overall Length | 4-5/8 in |
| Trade Size | 1 in |
| Thread Gender | Female |
| Cover Included | Yes |
| NEC/CEC Certifications and Compliances | Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III |
| Standard Materials and Finishes | Copperfree (4/10 of 1% max.) aluminum body and cover with epoxy powder coat |
| Package Quantity | 1 |
