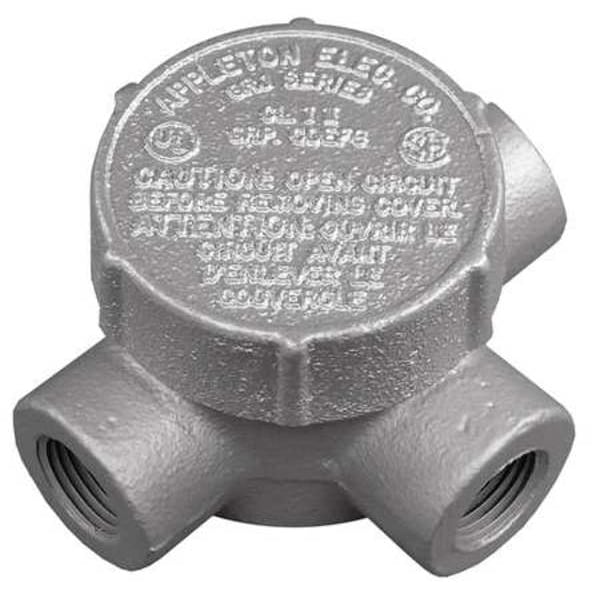

Conduit Outlet Body, Iron, T, 3/4 In.
| Item | Conduit Outlet Body |
|---|---|
| Conduit Outlet Body Type | Conduit Outlet Body |
| Hazardous Location | Yes |
| Hub Size | 3/4 in |
| Series | For Round Body |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | T |
| Material | Iron |
| Conduit Outlet Body Capacity | 7.3 cu in |
| Conduit Outlet Body Hub Size | 3/4 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | Threaded IMC |
| Back Type | Round |
| Conduit Outlet Hub Size | 3/4 in |
| Color | Gray |
| Standards | UL 886, UL Listed for Class I, Division 1 and 2, Groups C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III |
| Form | Form 7 |
| Body Style | T |
| Compatible Conduit Trade Size | 3/4 in |
| Overall Height | 2-7/8 in |
| Cover Included | Yes |
| Trade Size | 3/4 in |
| Connection Orientation | Multi-Angle |
| Finish | Triple Coat Epoxy Coating |
| Overall Length | 3-7/8 in |
| Compatible Conduit Type | Threaded IMC |
| Overall Width | 2-7/16 in |
| Shape | T |
| Thread Size | 3/4 in |
| Compatible Cover | GRJK-S, GRJK-SC |
| Number of Hubs | 3 |
| Body Type | Conduit Outlet Body |
| Hazardous Location Rating | Class I, Division 1 and 2, Groups C, D, Class II, Division 1 and 2, Groups E, F, G, Class III |
| Connection Type | Threaded |
| Body Capacity | 7.3 cu in |
| Indoor/Outdoor Usage | Indoor, Outdoor |
| Hub Style | Threaded |
| Thread Gender | Female |
| Thread Type | NPT |
| NEC/CEC Certifications and Compliances | Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; Class III |
| Standard Materials and Finishes | Malleable iron body with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat |
| Package Quantity | 1 |
