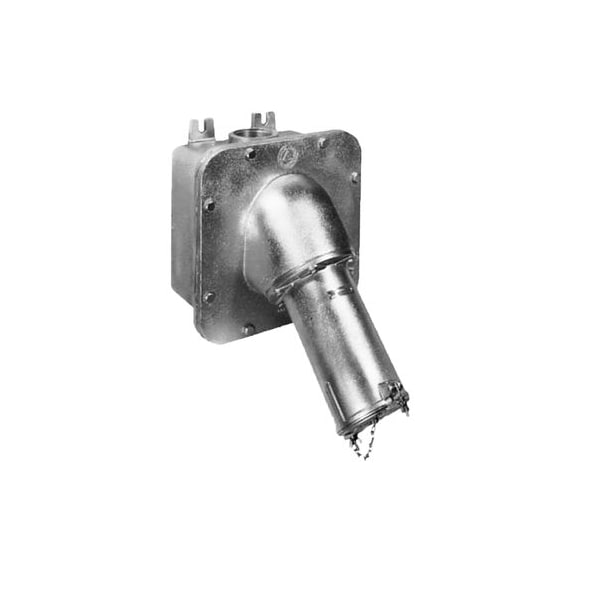

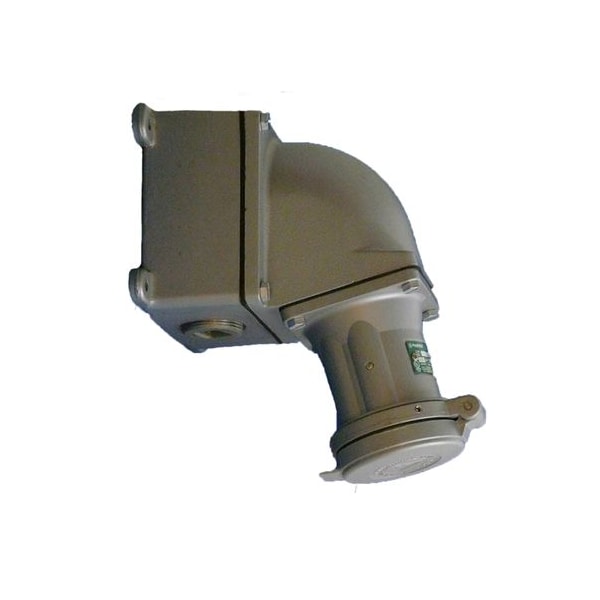

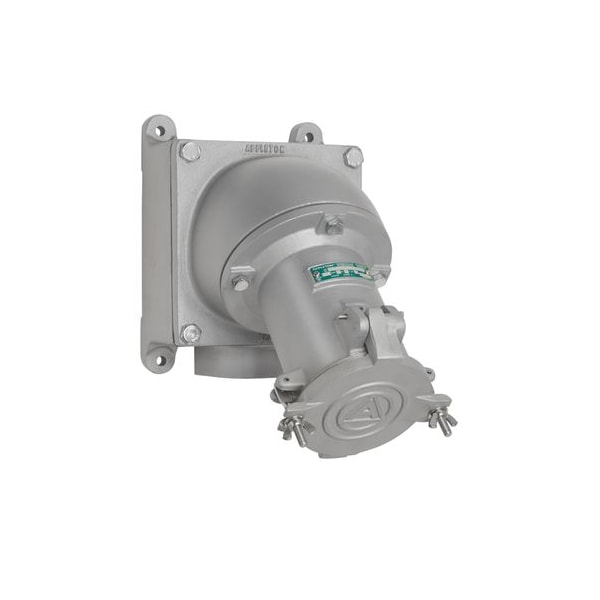

Connector, 30A, 2P, 2W, Coppr-Free Alum, 600V
| Item | Connector |
|---|---|
| Voltage | 600V AC |
| NEMA Rating | 3, 3R, 4, 4X |
| Amps | 30 A |
| Standards | CSA Certified 065179, CSA Certified C22.2 No. 182.1, UL 1682, UL 1686, UL 50E, UL E145916, UL E145917 |
| HP | 10 HP |
| Number of Wires | 2 |
| Number of Poles | 2 |
| Material | Copperfree Aluminum |
| Overall Length | 6.4 in |
| Minimum Wire Size | 10 AWG |
| Insulation Material | Glass-Filled Polyester |
| Housing Material Finish | Epoxy Powder Coated |
| IP Rating | Not Applicable |
| Maximum Wire Size | 6 AWG |
| For Maximum Cable Diameter | 1.25 in |
| For Minimum Cable Diameter | 0.5 in |
| Shrouded | Yes |
| Minimum Operating Temperature | -40 deg C |
| Market | Industrial |
| Power Indicating Light | No |
| Polarized | Yes |
| Wire Connection Type | Screw Terminals |
| NEMA Enclosure Rating | 3, 3R, 4, 4X |
| Resistance Properties | Weather Resistant |
| Connection Orientation | Straight |
| Maximum Operating Temperature | 107 Degrees C |
| Phase | Single |
| Housing Material | Aluminum |
| Housing Color | Gray |
| Grounding | Grounded |
| Voltage Rating | 250V DC, 600V AC |
| Switch Rated | No |
| Reverse Service | Yes |
| Compatible with Series | Powertite |
| Horsepower Rating | 10 HP |
| Current Rating | 30 A |
| Cap Type | No Cap or Cover |
| For Environment | Hazardous Location |
| Face Diameter | 2.88 in |
| Grounding Style | Style 1 |
| UL 94 Flammability Rating | Not Rated |
| Package Quantity | 1 |
