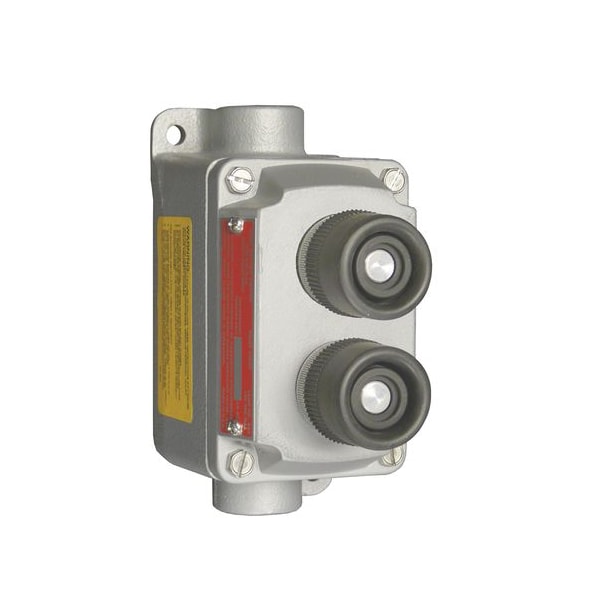

Estación de control, 1/2 pulgada, 1 canal, 10A @ 600V.
| Item | Control Station |
|---|---|
| Number of Gangs | 1 |
| Contact Form | 1NO/1NC |
| Legend | Stop, Start |
| Type of Operator | Push Button |
| Number of Pilot Lights | 0 |
| Number of Operators | 1 |
| Hub Style | Dead-End |
| NEMA Rating | 7, 9 |
| Series | EFD/EFDB |
| Hub Size | 1/2 in |
| Standards | CSA C22.2 No.25, CSA C22.2 No.30, CSA C22.2 No.14, cULus, E10449, UL 1203, UL 508 |
| Contact Rating | 10A @ 600V AC |
| Action | Momentary |
| IP Rating | IP54 |
| Mounting | Surface |
| Safety Rating | Class 1, Division 1, Groups B, C, D; Class 1, Division 2, Groups B, C, D; Class 2, Division 1 and 2, Groups E, F, G; and Class 2I |
| Height | 4.63 in |
| Width | 3 in |
| Depth | 4.69 in |
| Enclosure Material | Aluminum |
| Number of Speeds | Not Applicable |
| Enclosure Color | Gray |
| Operator Color | Red |
| Product Type | Control Station |
| Overall Height | 6.13 in |
| Overall Width | 3 in |
| Mounting Style | Flange |
| Mounting Orientation | Vertical |
| Panel Cutout Diameter | Not Applicable |
| DC Contact Rating | Not Rated |
| NEMA Enclosure Rating | 3, 7, 9 |
| Overall Depth | 4.81 in |
| Selector Switch Number of Positions | Not Applicable |
| Operating Temperature - Maximum | 104 deg F |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Pilot Light Color | Not Applicable |
| Resistance Properties | Arc Resistant, Corrosion Resistant, Dust Ignition Proof, Explosion Proof, High Dielectric Strength, Thermal Resistant |
| AC Contact Rating | 10 A @ 600 V |
| Maintained Action Release | Not Applicable |
| Hub Size - Maximum | 1/2 in |
| Operator Configuration | Buttons |
| Operating Temperature - Minimum | -13 deg F |
| Package Quantity | 1 |
