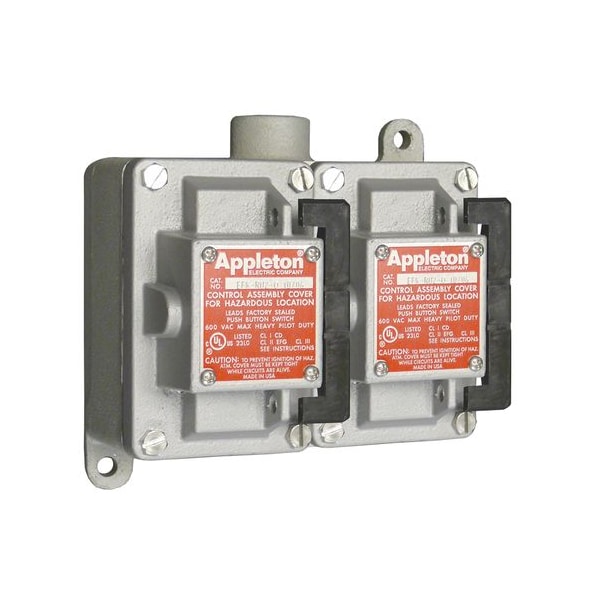

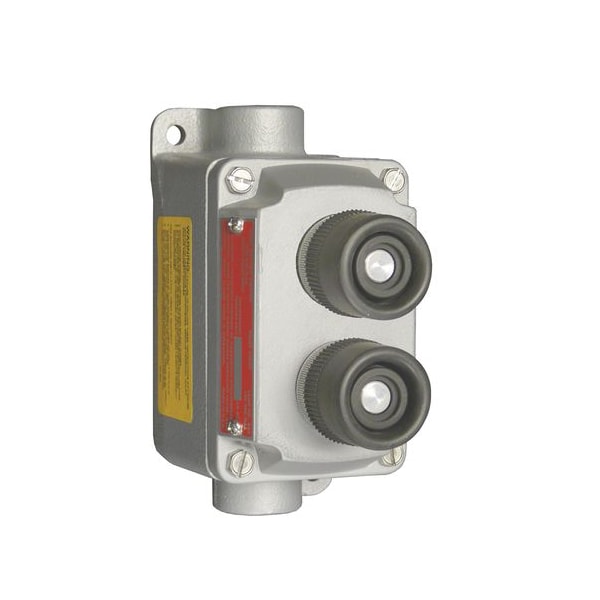

Estación de control, 3/4 pulgadas, 2 módulos, 10A @ 600V.
| Item | Control Station |
|---|---|
| Number of Gangs | 2 |
| Contact Form | 2NO/2NC |
| Legend | Stop, Start |
| Type of Operator | Push Button |
| Number of Pilot Lights | 0 |
| Number of Operators | 1 |
| Series | EFD/EFDB |
| NEMA Rating | 7, 9 |
| Hub Style | Feed-Thru |
| Hub Size | 3/4 in |
| Standards | CSA C22.2 No.25, CSA C22.2 No.30, CSA C22.2 No.14, cULus, E10449, UL 1203, UL 508 |
| Contact Rating | 10A @ 600V AC |
| Action | Momentary |
| IP Rating | IP54 |
| Safety Rating | Class 1, Division 1, Groups C, D; Class 1, Division 2, Groups B, C, D; Class 2, Division 1 and 2, Groups E, F, G; and Class 2I |
| Height | 4.63 in |
| Depth | 4.69 in |
| Width | 6.19 in |
| Enclosure Material | Aluminum |
| Mounting | Surface |
| Product Type | Control Station |
| Overall Width | 3 in |
| Overall Height | 6.13 in |
| Mounting Style | Flange |
| Operator Configuration | Buttons |
| Overall Depth | 4.81 in |
| Operating Temperature - Maximum | 104 deg F |
| NEMA Enclosure Rating | 3, 7, 9 |
| AC Contact Rating | 10 A @ 600 V |
| Resistance Properties | Arc Resistant, Corrosion Resistant, Dust Ignition Proof, Explosion Proof, High Dielectric Strength, Thermal Resistant |
| Maintained Action Release | Not Applicable |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Pilot Light Color | Not Applicable |
| Operating Temperature - Minimum | -13 deg F |
| Hub Size - Maximum | 3/4 in |
| Package Quantity | 1 |
