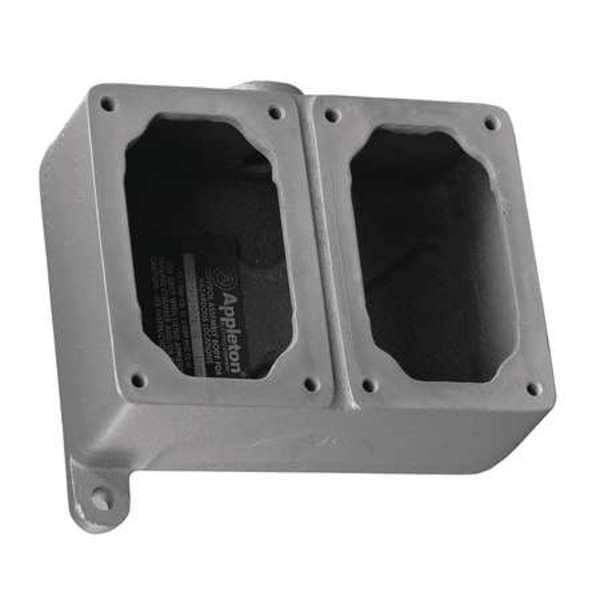

Electrical Box, Mounting Box Type, 2 Gangs, Aluminum
| Item | Electrical Box |
|---|---|
| Capacity | Not Applicable |
| Box Type | Mounting |
| Number of Gangs | 2 Gangs |
| Material | Aluminum |
| Width | 7.44 in |
| Depth | 5.31 in |
| Conduit Size | 1/2 in |
| Color | Gray |
| Includes | Internal Ground Screw |
| Standards | UL 508, UL 698, UL 1203; C22.2 No. 14-M, C22.2 No. 25, C22.2 No. 30, Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III |
| Hub Style | Dead-end |
| Height | 6.06 in |
| Hub Size | 1/2 in |
| Bracket Type | Lugs |
| Clamp Type | Clamp Not Included |
| IP Rating | Not Applicable |
| Modified Operation Three Position Selector Switches | Momentary contact right position, spring return to center, maintained contact left position. Momentary contact left position, spring return to center, maintained contact right position. See catalog pages for details |
| Nameplate Mounting Bracket | Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog. |
| Overall Width | 6-3/16 in |
| Box Diameter | Not Applicable |
| Number of 3/4 in Back Knockouts | 0 |
| NEMA Enclosure Rating | 3, 7CD, 9EFG |
| Number of 1/2 in Side Knockouts | 0 |
| For Construction Type | New Construction, Remodel |
| Hub Type | Dead End |
| Number of 3/4 in Side Knockouts | 0 |
| Box Shape | Rectangular |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Overall Height | 6-1/8 in |
| Number of 1/2 in Back Knockouts | 0 |
| Ceiling Fan Rated | Not Rated |
| Number of 1 in Side Knockouts | 0 |
| Box Height | 4-5/8 in |
| Overall Depth | 5 in |
| Package Quantity | 1 |
