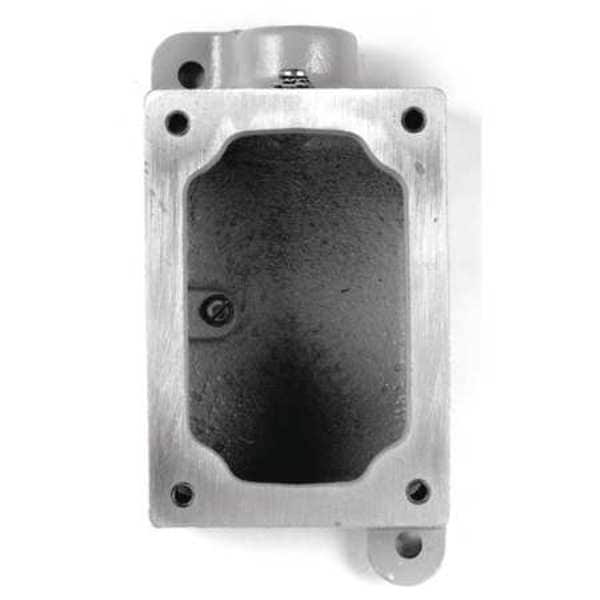

Electrical Box, Not Applicable, Mounting Box Type, 1 Gang, Malleable Iron, Rectangular Shape
| Item | Electrical Box |
|---|---|
| Capacity | Not Applicable |
| Box Type | Mounting |
| Number of Gangs | 1 Gang |
| Material | Malleable Iron |
| Overall Width | 3-3/4 in |
| Overall Depth | 3-1/16 in |
| Box Shape | Rectangular |
| Conduit Size | 1/2 in |
| Color | Gray |
| Includes | Internal Ground Screw |
| Hub Style | Dead-end |
| Hub Size | 1/2 in |
| Height | 6.06 in |
| Depth | 3.06 in |
| Width | 3.72 in |
| Standards | UL 894, UL1203, UL Listed for Class I, Division 1, Groups C, D; Class I, Division 2, Groups, B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III |
| Clamp Type | Clamp Not Included |
| Bracket Type | Lugs |
| IP Rating | Not Applicable |
| Modified Operation Three Position Selector Switches | Momentary contact right position, spring return to center, maintained contact left position (with or without alternate contacts). Momentary contact left position, spring return to center, maintained contact right position. See catalog pages for details |
| LED Pilot Lights | Red, amber, green pilot available in lieu of incandescent pilot lights. See catalog pages for details |
| For Construction Type | New Construction, Remodel |
| Box Diameter | Not Applicable |
| Ceiling Fan Rated | Not Rated |
| Hazardous Location Specification | Class I, Div 1, Group C, D, Class I, Div 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Number of 1 in Side Knockouts | 0 |
| Number of 3/4 in Side Knockouts | 0 |
| NEMA Enclosure Rating | 3, 7CD, 9EFG |
| Number of 1/2 in Side Knockouts | 0 |
| Number of 3/4 in Back Knockouts | 0 |
| Box Height | 5-5/16 in |
| Number of 1/2 in Back Knockouts | 0 |
| Overall Height | 6-13/16 in |
| Hub Type | Dead End |
| Package Quantity | 1 |
