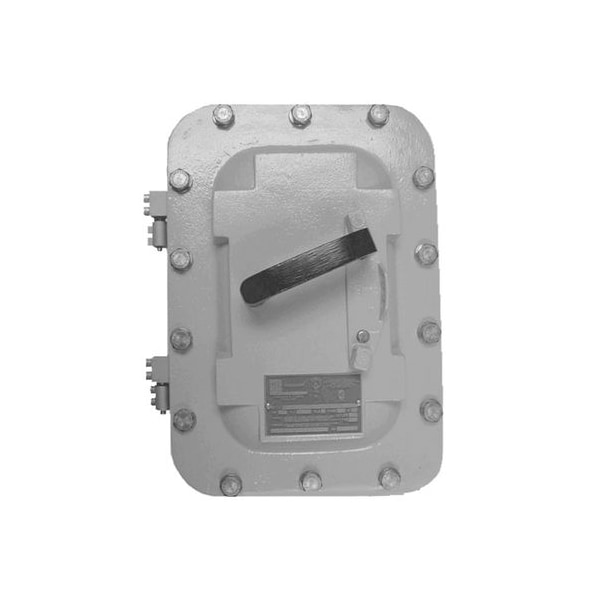

Enclosed Circuit Breaker, AE Series, 125A, 2 Pole, 600V AC, 65kA at 240V AC
| Item | Enclosed Circuit Breaker |
|---|---|
| Series | AE |
| Amps | 125A |
| Number of Poles | 2 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Actuator | Non-Interchangeable Trip |
| Max. AIR Rating | 65kA at 240V AC |
| Instantaneous Trip | Fixed |
| Terminal Connection | Lug |
| Frame Size | 400, KD |
| Width | 16.38 in |
| Depth | 12.63 in |
| Height | 35 in |
| DC Voltage Rating | 125/250V DC |
| AIR @ 480VAC | 35 kA |
| Min. Wire Size | 4 AWG |
| AIR @ 600VAC | 25kA |
| Max. Wire Size | 350 kcmil |
| Standards | UL 1203 |
| Safety Rating | Class I, Division I and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III |
| Features | Dust-Ignitionproof, Hazardous Location, Watertight |
| AIR @ 240VAC | 65kA |
| Housing Material | Copper Free Aluminum |
| Conduit Size | 4 in |
| Enclosure Rating | NEMA 4, 4X, 7BCD, 9EFG |
| Number of Outlets | 2 |
| Circuit Breaker Included | Cutler-Hammer |
| Length (Straight Wireway) | 35 in |
| Length | 35 in |
| Switch Type | Non-Interchangable Trip |
| Package Quantity | 1 |
