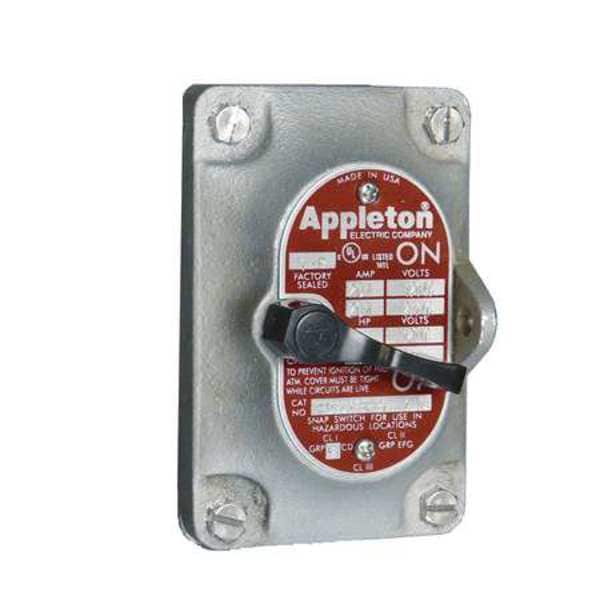

Cubierta frontal, 4 vías, 1 poste, 20 amperios.
| Item | Switch Cover |
|---|---|
| Number of Gangs | 1 |
| Legend | On/Off |
| Type of Operator | Tumbler Switch |
| NEMA Rating | NEMA 3, 7 BCD, 9EFG |
| For Use With | EDS Series Tumbler Switches |
| Width | 3 in |
| Material | Malleable Iron |
| HP | 1 hp @ 120V AC and 2 hp @ 240V AC |
| Voltage | 120/277V AC |
| Amps | 20 |
| Switch Type | 4-Way |
| Safety Rating | UL 894, UL 1203, UL Listed for Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III |
| Depth | 4.69 in |
| Legend Markings | On/Off |
| Height | 4.63 in |
| Includes | Front Operator, 4-Way, 20A Switch, Malleable Iron Cover |
| Compatible Product Type | Tumbler Switches |
| Compatible with Series | EDS |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Product Type | Cover |
| Package Quantity | 1 |
