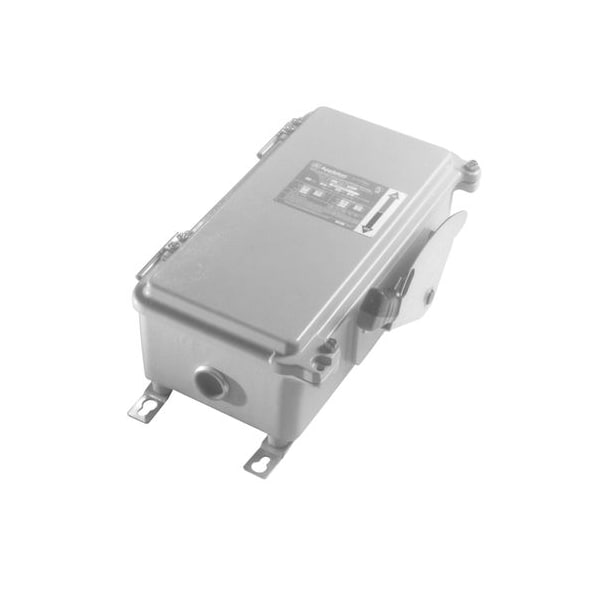

Fusible Interruptor de Seguridad para Ubicaciones Peligrosas, Deber para Ubicaciones Peligrosas, 600V, 3PST
| Item | Hazardous Location Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Hazardous Location |
| Voltage | 600V |
| Phase | 3 |
| HP | 50 HP @ 600 V AC |
| IP Rating | 66 |
| Number of Wires | 3 Wire, No Neutral |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Material of Construction | Copper Free Aluminum |
| Fusible / Nonfusible | Fusible |
| Width | 11.56 in |
| Neutral Assembly | Not Available |
| Height | 19-1/4 in |
| Safety Rating | UL Listed for Class I, Division 2, Groups B, C, D, Class II, Division 1 and 2, Groups F, G, and Class III, Class I, Zone 2, Group IIC, T3 |
| Fuse Type | J |
| Amps | 100 |
| Material | Copper Free Aluminum |
| Depth | 11 in |
| Standards | UL 98 |
| NEMA Rating | 12, 3, 3R, 4, 4X |
| Includes | Reducer Bushings |
| Series | MD2DS Series |
| Neutral Assembly Included | No |
| Enclosure Type | Enclosed |
| Features | No External Seals Required, Stainless Steel Captive Cover Bolts, Standard Epoxy Powder Coating |
| NEMA Enclosure Rating | 12, 3, 3R, 4, 4X |
| Number of Circuits Controlled | 1 |
| NEC Hazardous Location Classification | Division 1 & 2, Class I, Class II, Groups B, C, D, T3, Division 2, Group IIC, Groups F, G, Class III, IIC, Zone 1, AEx, Zone 2 |
| Current Rating | 100 A |
| Standard Conduit Size | 1-1/2 in |
| Horsepower @ 600V AC | 50 HP |
| Resistance Properties | Corrosion-Resistant |
| Wire Size | 12 AWG |
| Housing Material | Aluminum |
| For Fuse Class | Class J |
| Package Quantity | 1 |
