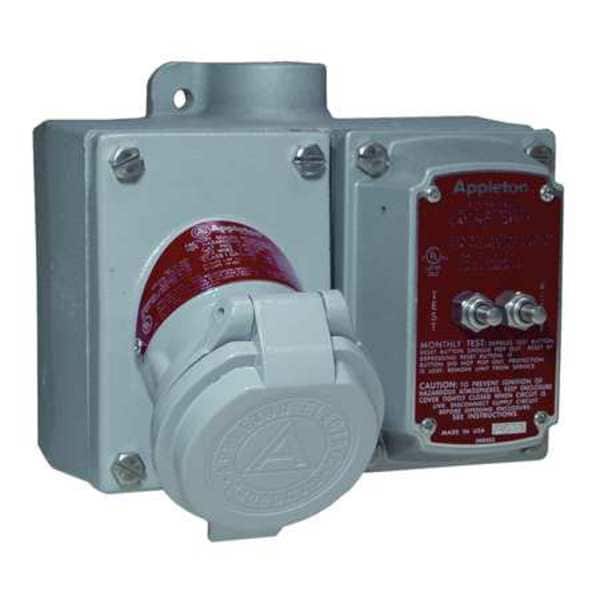

El receptáculo GFCI de Appleton Electric es ideal para garantizar la seguridad eléctrica en entornos industriales y comerciales. Con una clasificación de 20 amperios, 3 polos, 2 cables y voltaje de 125V, cumple con los estándares UL 943/1203.
| Item | GFCI Receptacle |
|---|---|
| NEMA Rating | 3, 3R, 7BCD, 9EFG |
| Current Rating | 20 A |
| GFCI | Yes |
| Housing Material | Copper-Free Aluminum |
| NEMA Type | 5-20R |
| NEMA Enclosure Rating | 3, 3R, 3RX, 7BCD, 9FG |
| Material | Copper-Free Aluminum |
| NEMA Receptacle Configuration | 5-20R |
| Number of Poles | 3 |
| Number of Wires | 2 |
| Standards | cUL Listed, UL Listed |
| Finish | Baked Gray Epoxy Clad Finish |
| Mounting Box | 2 Gang, Copperfree Aluminum |
| Hz | 60 |
| Hub Style | Dead-end |
| Hub Size | 1/2 in |
| Amps | 20 |
| Voltage | 120 V |
| Screws | Stainless Steel |
| Circuit Breaker | Yes |
| For Environment | Hazardous Location |
| Hub Type | Dead End |
| Resistance Properties | Dust Ignition Proof, Explosion Proof |
| Voltage Rating | 125 V AC |
| Features | Factory-Sealed |
| Hub Diameter | 1/2 in |
| Housing Material Finish | Powder Coated |
| Horsepower Rating | 1 HP |
| Includes Mounting Hardware | Yes |
| Number of Gangs | 2 |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Package Quantity | 1 |
