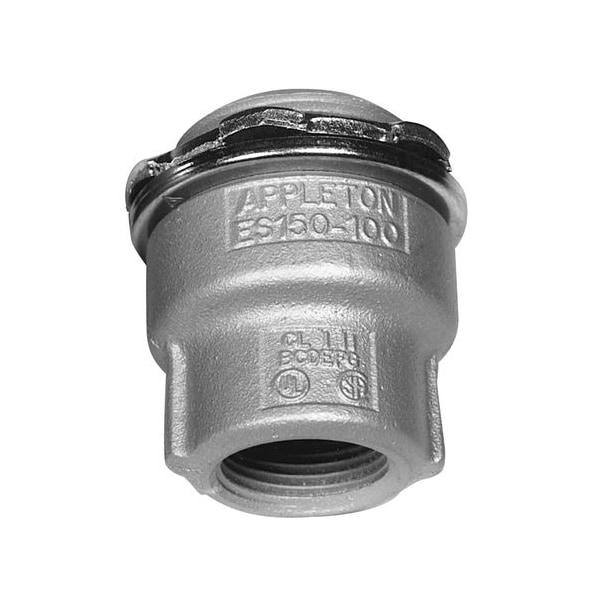

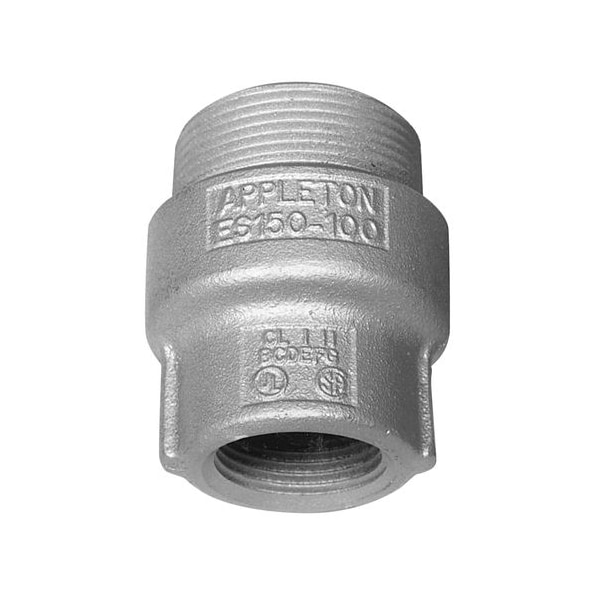

IMC Grounding Hub, 1-1/4 in x 2 in, Threaded, Iron, Silver
| Item | IMC |
|---|---|
| Conduit Fitting Type | Hub |
| Trade Size | 1-1/4 in x 2 in |
| Connection Type | Threaded |
| Material | Iron |
| Color | Silver |
| Overall Length | 3-1/8 in |
| Ends - Hazardous Fittings | 1-1/4 in FNPT x 2 in MNPT |
| Length | 3-1/8 in |
| Standards | CSA C22.2 No 30, UL 886 |
| Application | Used to Seal Vertical Conduit Risers At Switch Gear and Motor Control Centers |
| Hazardous Location Rating | Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, Class III |
| Conduit Orientation - Sealing Fitting | Vertical |
| Thread Size | 1 1/4 in, 2 in |
| Conduit Orientation | Vertical |
| Thread Type | NPT |
| Position | Vertical |
| Inside Diameter | 1-3/4 in |
| Seal Type | Fill, Sealing Hubs |
| Compatible Conduit Trade Size | 1 1/4 in, 2 in |
| Series | ES |
| Reduction Size | 2 to 1-1/4 in |
| Thread Gender | Male to Female |
| Conduit Fitting Material | Malleable Iron |
| Fitting Sub-Category | Sealing Fittings |
| Item - Conduit Fitting | 25% Fill, Sealing Hub |
| Connection | Male to Female |
| Package Quantity | 1 |
