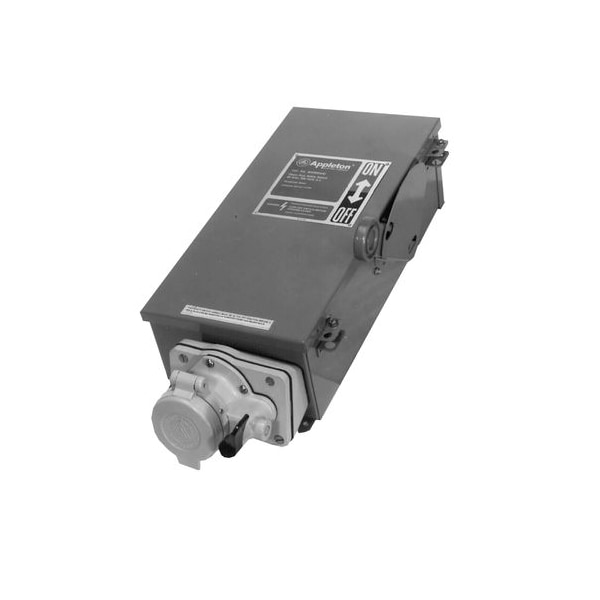

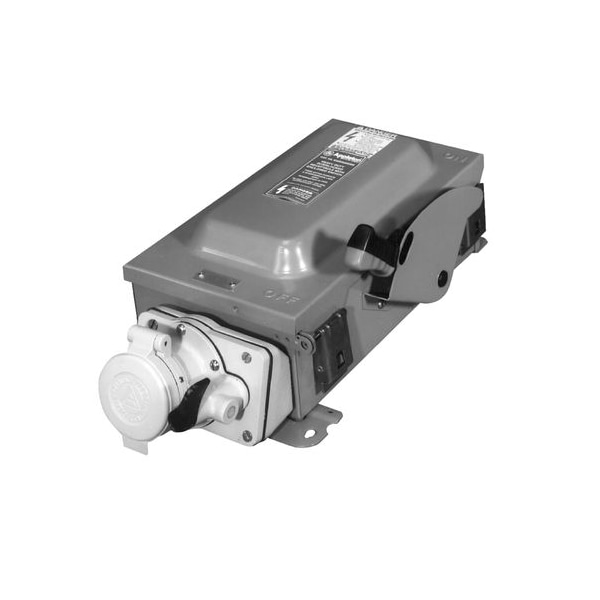

Este receptáculo interconectado de Appleton Electric es ideal para aplicaciones no fusibles de hasta 100 amperios. Con 4 polos y 3 cables, proporciona una conexión segura y confiable.
| Item | Mechanical Interlock Device |
|---|---|
| Type | Sheet Metal Enclosure, Enclosure, Nonfused |
| Voltage | 600V AC |
| Amps | 100 |
| Phase | Three |
| Number of Poles | 4 |
| Viewing Window | No |
| Number of Wires | 3 |
| Fused / Nonfused | Nonfused |
| HP | 75 hp |
| Standards | CSA Certified C22.2 No. 182.1, CSA Certified C22.2 No. 4, UL 1682, UL 1686, UL 50E, UL 98 |
| Material of Construction | Enamel Coated Sheet Metal |
| Overall Height | 26-1/4 in |
| Overall Width | 10-1/2 in |
| Enclosure Lock Type | Padlockable |
| Circuit Breaker Amp Rating | Not Applicable |
| For Maximum Cable Diameter | Not Applicable |
| Overall Depth | 5.53 in |
| Fuse Type | Not Applicable |
| Minimum Wire Size | 14 AWG |
| NEMA Enclosure Rating | 12, 4X, 3, 3R, 4 |
| For Minimum Cable Diameter | Not Applicable |
| Fuse Protection | Non-Fused |
| Compatible with Series | Powertite |
| Grounding | Grounded |
| Maximum Wire Size | Not Applicable |
| Compatible Plug Manufacturer Part Number | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Current Rating | 100 A |
| Circuit Breaker Type | Not Applicable |
| Number of Gangs | 1 |
| Housing Material | Sheet Metal |
| Handle Material | Polymer |
| Hub Type | Dead End |
| Reverse Service | Yes |
| Locking Handle | Yes |
| Voltage Rating | 600V AC |
| Wire Connection Type | Quick-Disconnect Terminals |
| Disconnect Switch | Yes |
| Horsepower Rating | 100 HP |
| Handle Type | Lever |
| Package Quantity | 1 |
