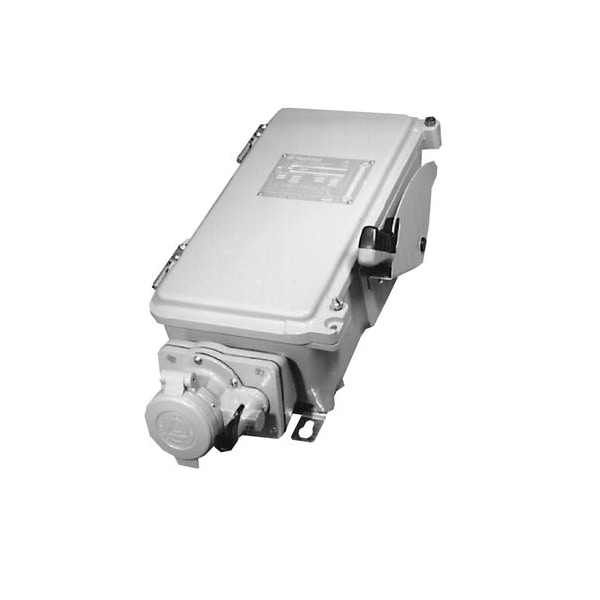

Este receptáculo bloqueable de Appleton Electric es ideal para aplicaciones que requieren un producto resistente y seguro. Con una capacidad de 30A y 4P, 3W, este receptáculo ofrece fiabilidad y durabilidad para su instalación eléctrica.
| Item | Mechanical Interlock Device |
|---|---|
| Type | Cast Aluminum Enclosure |
| Voltage | 600V AC |
| Amps | 30 |
| Number of Poles | 4 |
| Phase | Three |
| Viewing Window | No |
| Number of Wires | 3 |
| Fused / Nonfused | Nonfused |
| Material of Construction | Copperfree Aluminum with Epoxy Powder Coated Inside and Outside |
| HP | 30 hp |
| Standards | CSA C22.2 No. 182.1, CSA C22.2 No. 4, CSA Certified 025875, UL 1682, UL 1686, UL E145917 E160652, UL Listed 50E, UL Listed 98 |
| Overall Height | 22.88 in |
| Overall Width | 11.56 in |
| Grounding | Grounded |
| Maximum Wire Size | Not Applicable |
| Disconnect Switch | Yes |
| Resistance Properties | Corrosion Resistant |
| Reverse Service | Yes |
| Circuit Breaker Type | Not Applicable |
| Fuse Protection | Non-Fused |
| Wire Connection Type | Quick-Disconnect Terminals |
| NEMA Enclosure Rating | 12, 4X, 3, 3R, 4 |
| Current Rating | 30 A |
| Horsepower Rating | 30 HP |
| Compatible Plug Manufacturer Part Number | Not Applicable |
| Locking Handle | Yes |
| Fuse Type | Not Applicable |
| Circuit Breaker Amp Rating | Not Applicable |
| Overall Depth | 11 in |
| Hub Diameter | 1-1/2 in |
| For Minimum Cable Diameter | Not Applicable |
| Number of Gangs | 1 |
| Includes Mounting Hardware | Yes |
| Housing Material Finish | Epoxy Powder Coated |
| Housing Material | Copper-Free Aluminum |
| Handle Material | Polymer |
| Compatible with Series | Powertite |
| Voltage Rating | 600V AC |
| Enclosure Lock Type | Padlockable |
| For Maximum Cable Diameter | Not Applicable |
| Hub Type | Dead End |
| Type of Cable | #6 to #2, #14 to #2, #14 to #1/0 AWG |
| Hertz | 50/60 Hz |
| Horsepower Ratings | 7.5, 15, 30, 60 or 75 |
| Area Classification | Listed for Ordinary (Unclassified) Locations; NEMA 3, 3R, 4, 4X, 12 |
| Materials and Finishes | Receptacle assembly and WSR enclosure are copperfree (4/10 of 1% max.) aluminum with epoxy powder coating inside and outside. Handle is high impact polymer. |
| Package Quantity | 1 |
