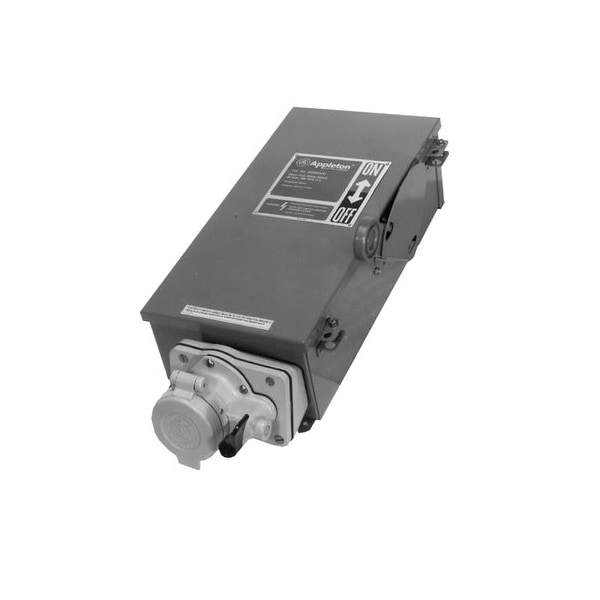

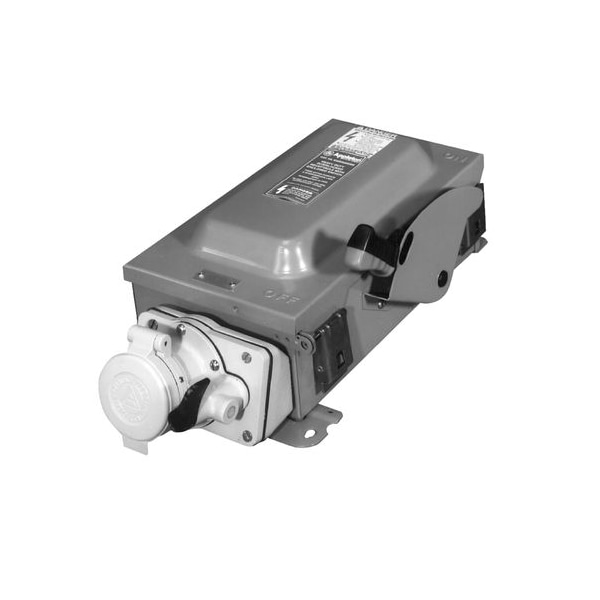

Este receptáculo interconectado no fusible de Appleton Electric cuenta con una capacidad de 30 amperios y 4 polos. Es ideal para aplicaciones industriales y comerciales que requieren un alto grado de seguridad y fiabilidad.
| Item | Mechanical Interlock Device |
|---|---|
| Type | Stainless Steel Enclosure |
| Voltage | 600V AC |
| Amps | 30 |
| Number of Poles | 4 |
| Phase | Three |
| Viewing Window | No |
| Number of Wires | 3 |
| Fused / Nonfused | Nonfused |
| Standards | CSA Certified C22.2 No. 182.1, CSA Certified C22.2 No. 4, UL 1682, UL 1686, UL 50E, UL 98 |
| Material of Construction | Stainless steel |
| HP | 20 hp |
| Overall Width | 10.81 in |
| Overall Height | 23 in |
| Maximum Wire Size | Not Applicable |
| Horsepower Rating | 30 HP |
| Fuse Protection | Non-Fused |
| Disconnect Switch | Yes |
| Handle Material | Polymer |
| Voltage Rating | 600V AC |
| Current Rating | 30 A |
| Housing Material | Stainless Steel |
| Locking Handle | Yes |
| Circuit Breaker Amp Rating | Not Applicable |
| Enclosure Lock Type | Padlockable |
| Fuse Type | Not Applicable |
| Minimum Wire Size | 14 AWG |
| Wire Connection Type | Quick-Disconnect Terminals |
| For Minimum Cable Diameter | Not Applicable |
| Hub Type | Dead End |
| Resistance Properties | Corrosion Resistant |
| NEMA Enclosure Rating | 12, 4X, 3, 3R, 4 |
| Handle Type | Lever |
| Compatible Plug Manufacturer Part Number | Not Applicable |
| For Maximum Cable Diameter | Not Applicable |
| Number of Gangs | 1 |
| Grounding | Grounded |
| Overall Depth | 5.11 in |
| Reverse Service | Yes |
| Compatible with Series | Powertite |
| Circuit Breaker Type | Not Applicable |
| Package Quantity | 1 |
