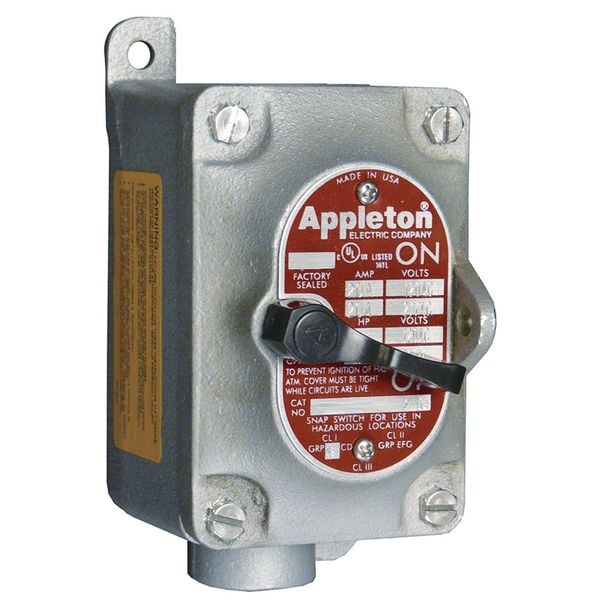

Arrancador manual de motor, de terminación muerta, Hub 1, 2P.
| Operator | Handle |
|---|---|
| Enclosure NEMA Rating | 3, 7CD, 9EFG |
| Depth | 5.31 in |
| Number of Required Thermals | 1 |
| Frame Size | Not Applicable |
| Height | 7.03 in |
| Amps AC | 20 A |
| No. of Thermal Units Required | 1 |
| Item | Motor Starter |
| Width | 3.72 in |
| Starter Type | Manual |
| Number of Poles | 2 |
| HP @ 115VDC | 1 hp |
| Hub Size | 1 in |
| Hub Style | Dead-end |
| HP @ 32VDC | 1/4 hp |
| Description/Special Features | Cast In Hubs. Interchangeable Heater Units. |
| HP @ 120V | 1 HP |
| HP @ 230VDC | 1 hp |
| Number of Gangs | 1 |
| HP @ 240V | 1 HP |
| HP @ 120VDC | 1 hp |
| HP @ 240VDC | 1 HP |
| Standards | CEC, CSA, cUL, NEC, UL Listed |
| Series | Contender(TM) |
| Hub Type | Dead End |
| Horsepower @ 230V DC | 1 HP |
| Starter Style | NEMA |
| Overload Protection Type | Thermal |
| NEMA Enclosure Rating | 3 |
| Overall Height | 7.03 in |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Minimum Overload Relay Current Setting | Not Applicable |
| Resistance Properties | Dust Ignition Proof, Explosion Proof |
| Horsepower @ 115V DC | 1 HP |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| IP Rating | Not Applicable |
| Maximum Overload Relay Current Setting | Not Applicable |
| Overall Depth | 5.31 in |
| Overall Width | 3.72 in |
| Hub Diameter | 1 in |
| Horsepower @ Three Phase - 240V AC | 1 HP |
| Mounting Hole Diameter | 0.34 in |
| Current AC | 20 A |
| Package Quantity | 1 |
