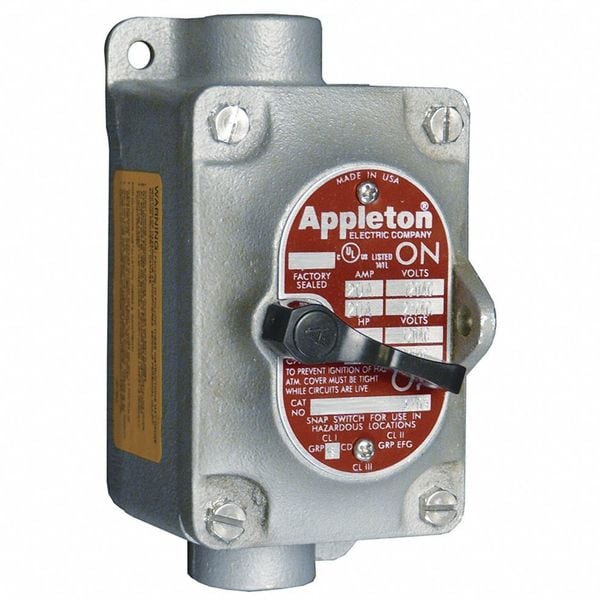

Interruptor de motor, 30A, 600V, de paso, Cubo 1, 3P
| Operator | Handle |
|---|---|
| Enclosure NEMA Rating | 3, 7CD, 9EFG |
| Depth | 5.31 in |
| Amps AC | 30 A |
| Height | 7.03 in |
| No. of Thermal Units Required | None |
| Width | 3.72 in |
| Item | Motor Switch |
| Starter Type | Manual |
| Number of Poles | 3 |
| Max. Voltage | 600V AC |
| Hub Size | 1 in |
| Hub Style | Feed-Thru |
| HP @ 120V | 3 HP |
| Number of Gangs | 1 |
| Description/Special Features | Cast In Hubs |
| Standards | CEC, NEC |
| HP @ 600V | 15 hp |
| HP @ 240V | 7.5 HP |
| HP @ 480V | 15 HP |
| Horsepower @ Three Phase - 600V AC | 15 HP |
| Hub Diameter | 1 in |
| Current AC | 30 A |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Mounting Hole Distance - Height | 5.88 in |
| Maximum Operating Temperature | 104 deg F |
| Overall Height | 7.03 in |
| Overall Width | 3.72 in |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Maximum Voltage Rating | 600 V AC |
| Series | Contender |
| Phase | Three |
| Hub Type | Feed Through |
| NEMA Enclosure Rating | 3 |
| Includes Pilot Light | Yes |
| Mounting Hole Diameter | 0.34 in |
| Horsepower @ Three Phase - 480V AC | 15 HP |
| Resistance Properties | Dust Ignition Proof, Explosion Proof |
| Mounting Hole Distance - Width | 2.63 in |
| Overall Depth | 5.31 in |
| Terminal Connection Type | Screw Terminals |
| Mounting Style | Surface |
| Starter Style | NEMA |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Package Quantity | 1 |
