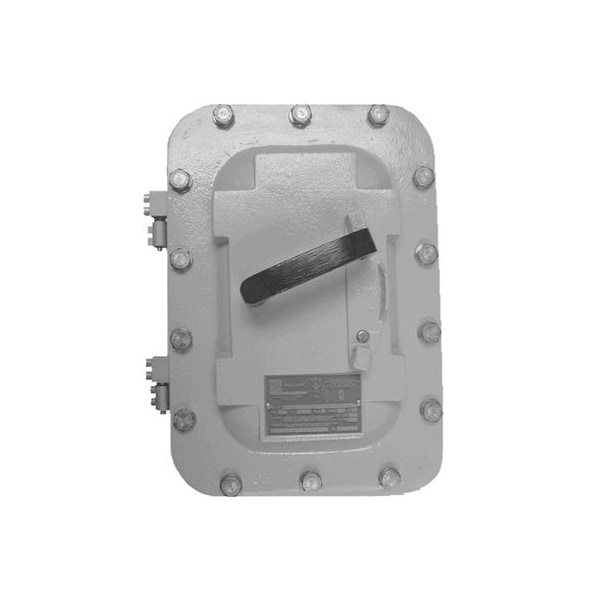

Interruptor de seguridad para ubicaciones peligrosas no fusible, resistente, 600V, 3PST
| Item | Hazardous Location Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V |
| Phase | 3 |
| HP | 75 HP @ 600 V AC |
| Number of Wires | 3 Wire, Accommodates Neutral |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Material of Construction | Copper Free Aluminum |
| Width | 11 in |
| Fusible / Nonfusible | Nonfusible |
| Amps | 100 |
| Depth | 8-31/32 in |
| Material | Copper Free Aluminum |
| NEMA Rating | 4, 4X, 7, 9 |
| Neutral Assembly | Included |
| Standards | UL 1203 |
| Safety Rating | UL Listed for Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III |
| Height | 20-1/2 in |
| Series | AE Series |
| Enclosure Type | Enclosed |
| Neutral Assembly Included | Yes |
| Electrical Connection | Bolt |
| Features | Bolt on Stainless Steel Slotted Mounting Feet, Disconnects Mounted on Galvanized Steel Removable Pan, External Flange, External Operating Handle with Stops, O-Ring Gasket, Plugged 1/2in Outlets on Top and Bottom for Breather and Drain, Flame Path Between Box and Cover, Stainless Steel Hinges, Standard Stainless Steel, Captive Quad-Lead(R) Cover Bolts, Standard Outlets Top and Bottom |
| Number of Circuits Controlled | 4 |
| Housing Material | Aluminum |
| Horsepower @ 480V AC | 75 HP |
| Maximum Enclosure Depth | 5-1/2 in |
| Number of Locks | 3 |
| Current Rating | 100 A |
| For Fuse Class | Not Applicable |
| Horsepower @ 240V AC | 30 HP |
| Standard Conduit Size | 2-1/2 in |
| NEC Hazardous Location Classification | Division 1 & 2, Class I, Class II, Groups B, C, D, Groups E, F, G, Class III |
| Horsepower @ 600V AC | 75 HP |
| NEMA Enclosure Rating | 4, 4X |
| Package Quantity | 1 |
