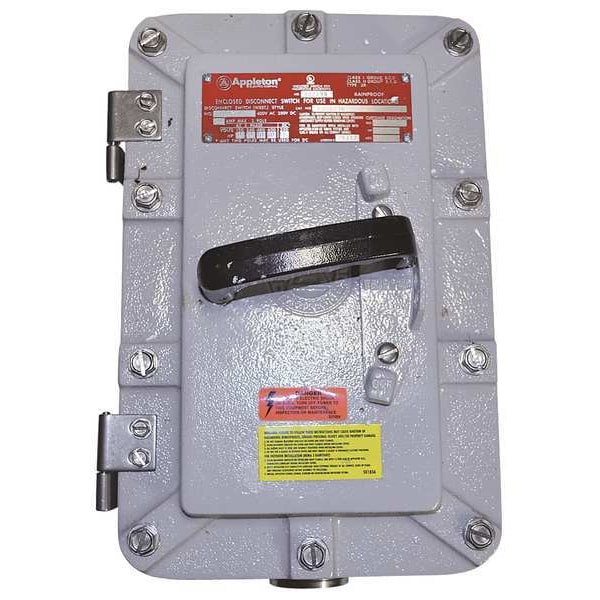

Interruptor de seguridad para ubicaciones peligrosas no fusible, de servicio pesado, 600V, 3PST.
| Item | Hazardous Location Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V |
| Phase | 3 |
| HP | 75 HP @ 600 V AC |
| Number of Wires | 3 Wire, Accommodates Neutral |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Material of Construction | Copper Free Aluminum |
| Standards | C22.2 No. 25, C22.2 No. 30, C22.2 No. 4, UL 894, UL1203 |
| Fusible / Nonfusible | Nonfusible |
| Includes | Cutler Hammer Disconnect Switch |
| Depth | 7-1/4 in |
| Safety Rating | UL Listed for Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III |
| Amps | 100 |
| Neutral Assembly | Included |
| Height | 15-1/8 in |
| Material | Copper Free Aluminum |
| Width | 9-5/8 in |
| NEMA Rating | 4, 4X, 7, 9 |
| Series | EDS Series |
| Enclosure Type | Enclosed |
| Neutral Assembly Included | Yes |
| Features | Top and Bottom Openings for Drainage, Covers have Stainless Steel Screws to Prevent "Freezing", Functions as Load Disconnect Switch or as Individual Motor Control Switch, Hinged, Removable Cover, Insulated Neutral Lug Supplied as Standard, Removable Mounting Plate, Removable Reducer Bushing Furnished with Each Opening, Stainless Steel Shaft and Bushing within Rugged Handle, Self-Locating, Spring-Mounted Internal Handle Actuator, Top and Bottom Standard Feed-Thru Conduit Openings |
| Electrical Connection | Spring Terminal |
| Standard Conduit Size | 2 in |
| NEC Hazardous Location Classification | Division 1 & 2, Class I, Class II, Groups B, C, D, Groups E, F, G, Class III |
| Horsepower @ 480V AC | 75 HP |
| For Fuse Class | Not Applicable |
| NEMA Enclosure Rating | 3R, 4, 4X, 7, 9 |
| Housing Material | Aluminum |
| Horsepower @ 600V AC | 75 HP |
| Horsepower @ 240V AC | 30 HP |
| Current Rating | 100 A |
| Package Quantity | 1 |
