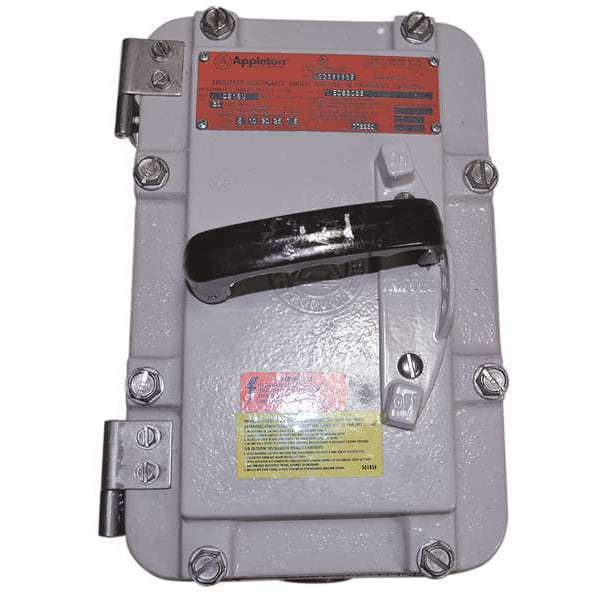

Interruptor de seguridad para ubicaciones peligrosas no fusible, servicio pesado, 600V, 3PST.
| Item | Hazardous Location Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V |
| Phase | 3 |
| HP | 20 HP @ 600 V AC |
| Number of Wires | 3 Wire, Accommodates Neutral |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Material of Construction | Copper Free Aluminum |
| Neutral Assembly | Included |
| Depth | 6-1/2 in |
| Material | Copper Free Aluminum |
| Amps | 30 |
| NEMA Rating | 4, 4X, 7, 9 |
| Fusible / Nonfusible | Nonfusible |
| Safety Rating | UL Listed for Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III |
| Height | 13-1/4 in |
| Includes | Cutler Hammer Disconnect Switch |
| Standards | C22.2 No. 25, C22.2 No. 30, C22.2 No. 4, UL 894, UL1203 |
| Width | 8-1/4 in |
| Series | EDS Series |
| Enclosure Type | Enclosed |
| Features | Top and Bottom Openings for Drainage, Covers have Stainless Steel Screws to Prevent "Freezing", Functions as Load Disconnect Switch or as Individual Motor Control Switch, Hinged, Removable Cover, Standard Insulated Neutral Lug Supplied, Removable Mounting Plate, Removable Reducer Bushing Furnished with Each Opening, Stainless Steel Shaft and Bushing within Rugged Handle, Self-Locating, Spring-Mounted Internal Handle Actuator, Top and Bottom Standard Feed-Thru Conduit Openings |
| Electrical Connection | Spring Terminal |
| Neutral Assembly Included | Yes |
| Housing Material | Aluminum |
| For Fuse Class | Not Applicable |
| Horsepower @ 240V AC | 10 HP |
| Current Rating | 30 A |
| Standard Conduit Size | 1-1/2 in |
| NEMA Enclosure Rating | 3R, 4, 4X, 7, 9 |
| Horsepower @ 480V AC | 20 HP |
| Horsepower @ 600V AC | 25 HP |
| NEC Hazardous Location Classification | Division 1 & 2, Class I, Class II, Groups B, C, D, Groups E, F, G, Class III |
| Package Quantity | 1 |
