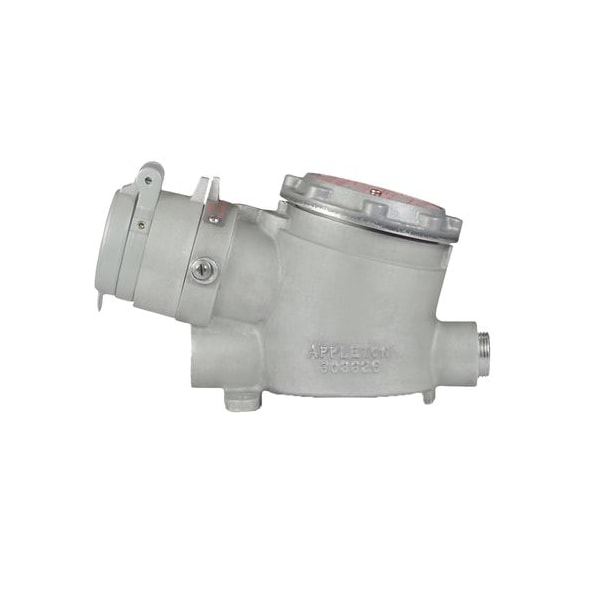

Enchufe de pasador y clavija de 100 A, 600V CA, trifásico, 4 polos, estilo 2 de puesta a tierra, NEMA 12, 3, 3R, 4, 4X de Appleton Electric. Diseñado para aplicaciones industriales y entornos exigentes.
| Item | Pin & Sleeve Plug |
|---|---|
| Current Rating | 100 A |
| Voltage Rating | 600V AC |
| Phase | Three |
| Number of Poles | 4 |
| Number of Wires | 3 |
| NEMA Enclosure Rating | 4X, 3, 3R, 4, 12 |
| Connection Orientation | Straight |
| Switch Rated | No |
| Grounding Style | Style 2 |
| Housing Color | Gray |
| Cap Type | Screw-On Cap |
| For Maximum Cable Diameter | 1.906 in |
| For Minimum Cable Diameter | 7/8 in |
| Standards | CSA Certified 025875, CSA Certified C22.2 No. 159, CSA Certified C22.2 No. 25, CSA Certified C22.2 No. 30, UL 1010 (UL 1203), UL 1682, UL 894, UL E10784 |
| Voltage | 600V AC |
| NEMA Rating | 12, 3, 3R, 4, 4X |
| Material | Copperfree Aluminum |
| Amps | 100 |
| Features | Auxiliary Contacts 1NO + 1NC, Special Polarization: Prevents Plug Insertion in a Receptacle or Connector Wired for a Different Voltage |
| Finish | aluminum with epoxy powder coat |
| Outside Diameter | 4 in |
| Overall Length | 10-1/2 in |
| Grounding | Grounded |
| Housing Material Finish | Epoxy Coat with Powder Finish |
| Maximum Wire Size | 1/0 AWG |
| Compatible with Series | Powertite |
| Housing Material | Metallic |
| For Environment | Hazardous Location |
| Insulation Material | Fiberglass-Reinforced Polyester |
| Polarized | Yes |
| Minimum Wire Size | 2 AWG |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Horsepower Rating | 75 HP |
| Face Diameter | 2.47 in |
| Mounting Box | Feed-Thru |
| Reverse Service | No |
| Package Quantity | 1 |
