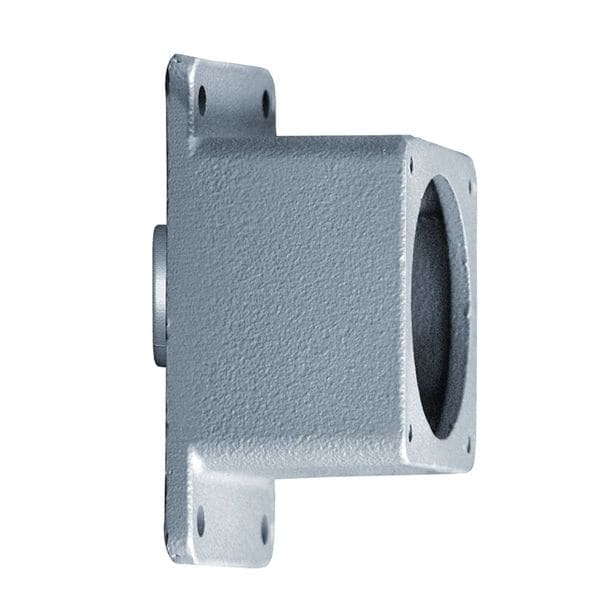

Este receptáculo de clavija y enchufe de Appleton Electric es ideal para aplicaciones industriales y comerciales. Con capacidad para 60 A y voltaje de 250/600V AC, cuenta con 3 polos y está fabricado bajo estándares NEMA 4X para resistir condiciones adversas.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 60 A |
| Voltage Rating | 250/600V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | Not Rated |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Flange Type | Non-Flanged |
| Housing Color | Gray |
| Cap Type | No Cap or Cover |
| Standards | CSA Certified 065179, CSA Certified C22.2 No. 182.1-13, cULus E145917 (200 Amp), UL 1682, UL 1686, UL 50E, UL E145916, UL E145917 |
| Resistance Properties | Weather Resistant |
| Angle | Straight |
| Use With | Appleton Powertite Series Pin and Sleeve |
| Length | 6-1/2 in |
| Amps | 0.6 |
| Box Type | Dead End |
| Material | Copper-Free Aluminum |
| Hub | 1-1/2 in |
| Width | 4-1/4 in |
| Includes | Not Applicable |
| Length (Straight Wireway) | 6-1/2 in |
| Compatible with Series | Powertite |
| For Use With | AE Series Plugs, AE Series Receptacles Connectors |
| Box Angle | Straight |
| Material Type | Metallic |
| Overall Length | 4-1/4 in |
| Mount Type | Recessed |
| Overall Height | 6-1/2 in |
| Maximum Operating Temperature | 40 deg C |
| Hazardous Location Specification | Not Rated |
| Finish | Epoxy Powder Coat |
| Minimum Operating Temperature | -25 deg C |
| Hub Type | Dead End |
| For Environment | Dry |
| Hub Diameter | 1-1/2 in |
| Number of Gangs | 1 |
| Overall Width | 3.13 in |
| Package Quantity | 1 |
