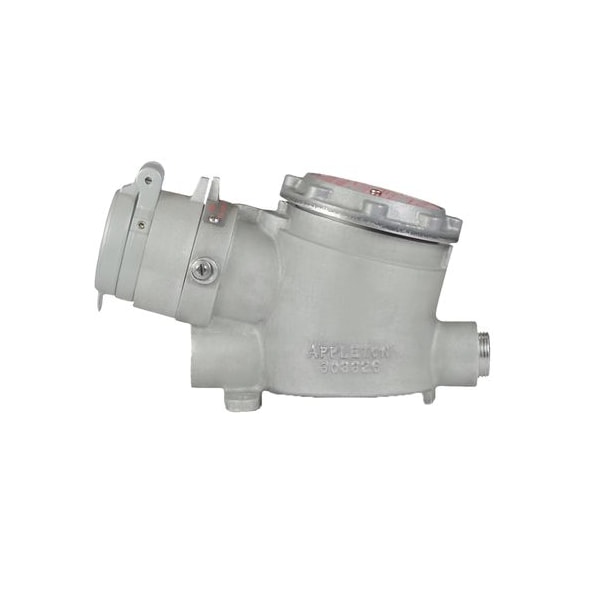

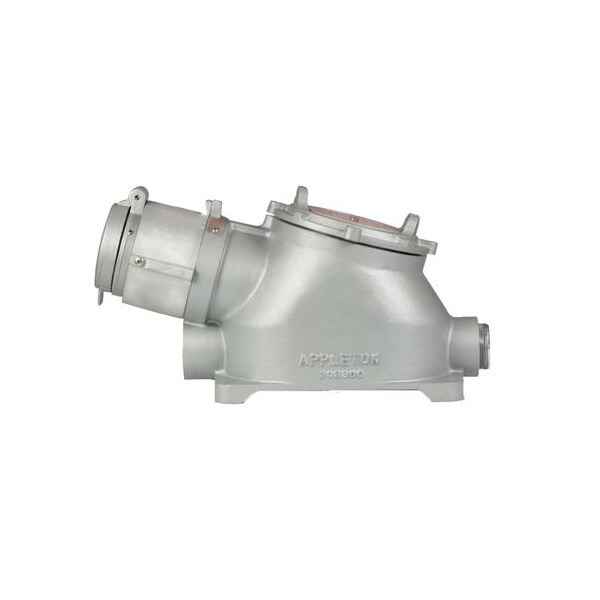

Esta clavija eléctrica de 30 amperios y 4 polos es ideal para aplicaciones industriales, fabricada en aluminio resistente y con capacidad para 600V. Cumple con los estándares NEMA 3, 3R, 4 y 4X para garantizar su funcionamiento en entornos exigentes.
| Item | Plug |
|---|---|
| Voltage | 600 V AC |
| NEMA Rating | 3, 3R, 4, 4X |
| Amps | 30 |
| Standards | CSA Certified 025875, CSA Certified C22.2 No. 159, CSA Certified C22.2 No. 25, CSA Certified C22.2 No. 30, UL 1010 (UL 1203), UL 1682, UL 894, UL E10784 |
| HP | 20 HP |
| Number of Wires | 3 |
| Number of Poles | 4 |
| Material | Copperfree Aluminum |
| Outside Diameter | 3.13 in |
| Overall Length | 6 in |
| Features | Auxiliary Contacts 1NO + 1NC, Special Polarization: Prevents Plug Insertion in a Receptacle or Connector Wired for a Different Voltage |
| Insulation Material | Fiberglass-Reinforced Polyester |
| Compatible with Series | Powertite |
| Housing Material Finish | Epoxy Coat with Powder Finish |
| Housing Material | Metallic |
| Face Diameter | 1.86 in |
| For Environment | Hazardous Location |
| Phase | Three |
| For Maximum Cable Diameter | 1-1/8 in |
| For Minimum Cable Diameter | 1/2 in |
| NEMA Enclosure Rating | 3, 3R, 4, 4X, 7CD, 9FG |
| Grounding Style | Style 2 |
| Maximum Wire Size | 8 AWG |
| Grounding | Grounded |
| Current Rating | 30 A |
| Cap Type | Screw-On Cap |
| Minimum Wire Size | 10 AWG |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Polarized | Yes |
| Horsepower Rating | 20 HP |
| Voltage Rating | 600V AC |
| Connection Orientation | Straight |
| Housing Color | Gray |
| Reverse Service | No |
| Switch Rated | No |
| Hazardous Area Classification | Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups F, G; Class III; NEMA 3, 3R, 4, 4X, 7CD, 9FG |
| Wire Range | 30 Amp: #10-#8, 60 Amp: #6-#4, 100 Amp: #2-1/0 |
| Plug Cable Diameter | 30 Amp: 0.500 to 1.125#8221;, 60 Amp: 0.500 to 1.375#8221;, 100 Amp: 0.875#8221; to 1.906#8221; |
| Amperage | 30, 60, 100 |
| Mounting Box Entries | Feed-Thru |
| Materials and Finishes | Receptacles, mounting box, covers and plug housings are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Insulating blocks are fiber glass reinforced polyester. |
| Package Quantity | 1 |
