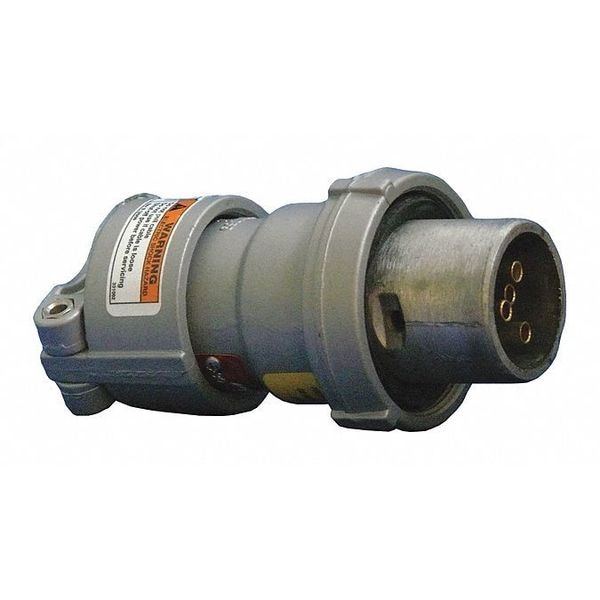

Plug, 30A, 4P, 4W, Alum, 600V, NEMA 3, 3R, 4, 4X
| Number of Poles | 4 |
|---|---|
| Number of Wires | 4 |
| Switch Rated | No |
| Grounding Style | Style 1 |
| NEMA Rating | 3, 3R, 4, 4X |
| Item | Plug |
| Voltage | 600V AC |
| Material | Copperfree Aluminum |
| Amps | 30 |
| HP | 20 hp |
| Standards | CSA Certified 065179, CSA Certified C22.2 No. 182.1-13, cULus E145917 (200 Amp), UL 1682, UL 50E, UL E145916, UL E145917 |
| Features | Bushing is Highly Resistant to Hydrocarbon Deterioration and is Self-Extinguishing, Neoprene Bushing Compressed by Cable Collar Prevent Entrance of Water |
| Phase | Three |
| Current Rating | 30 A |
| Minimum Wire Size | 10 AWG |
| Horsepower Rating | 40 HP |
| NEMA Enclosure Rating | 3, 3R, 4, 4X |
| Overall Length | 6 in |
| Cap Type | Screw-On Cap |
| Reverse Service | No |
| Polarized | No |
| Compatible with Series | FSQC, DBR, EBR, EBRH, ID2SR, JBR, MD2SR |
| Housing Material Finish | Epoxy Coat with Powder Finish |
| Housing Material | Metallic |
| Maximum Wire Size | 8 AWG |
| For Maximum Cable Diameter | 1-1/8 in |
| Maximum Operating Temperature | 40 deg C |
| Resistance Properties | Fire Resistant, Heat Resistant |
| Face Diameter | 1.86 in |
| Voltage Rating | 250V DC, 600V AC |
| Grounding | Grounded |
| Wire Connection Type | Wire Leads |
| Insulation Material | Fiberglass-Reinforced Polyester |
| Outside Diameter | 3.13 in |
| Minimum Operating Temperature | -25 deg C |
| For Minimum Cable Diameter | 1/2 in |
| Housing Color | Gray |
| Connection Orientation | Straight |
| Package Quantity | 1 |
