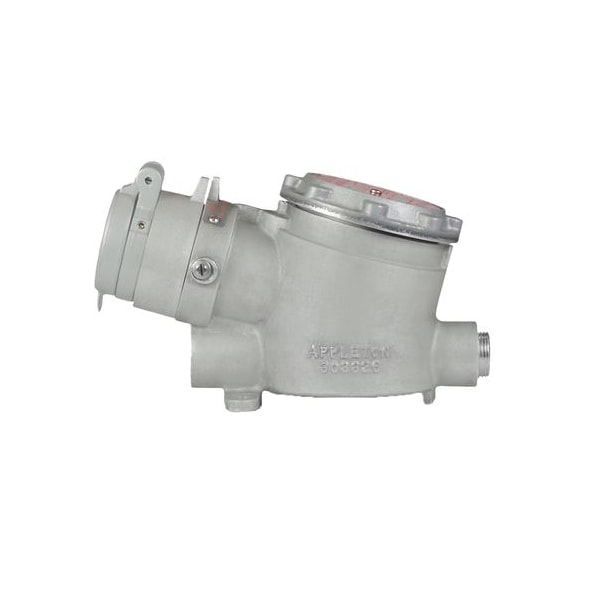

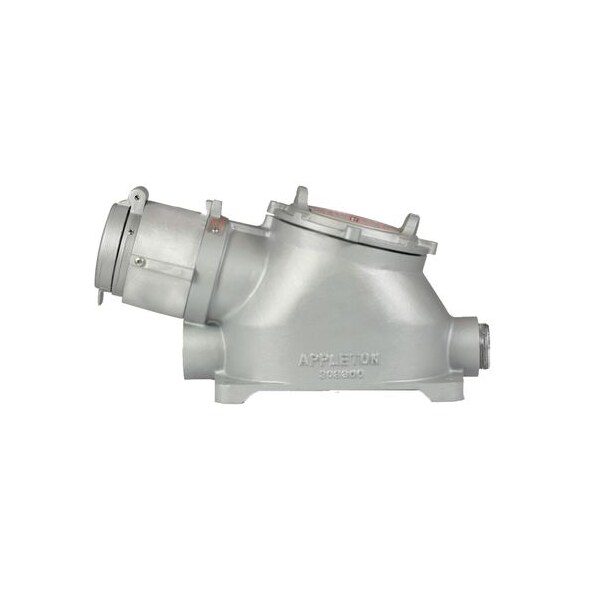

El conector eléctrico Appleton ACP6034BC de 60 amperios, 4 polos, 3 cables, fabricado en aluminio y con capacidad de hasta 600V. Cumple con las normativas NEMA 3, 3R, 4 y 4X para uso en entornos exigentes.
| Item | Plug |
|---|---|
| Voltage | 600 V AC |
| NEMA Rating | 3, 3R, 4, 4X |
| Amps | 60 |
| Standards | CSA Certified 025875, CSA Certified C22.2 No. 159, CSA Certified C22.2 No. 25, CSA Certified C22.2 No. 30, UL 1010 (UL 1203), UL 1682, UL 894, UL E10784 |
| Number of Wires | 3 |
| Number of Poles | 4 |
| Material | Copperfree Aluminum |
| Overall Length | 7.81 in |
| Outside Diameter | 3-1/2 in |
| Features | Auxiliary Contacts 1NO + 1NC, Special Polarization: Prevents Plug Insertion in a Receptacle or Connector Wired for a Different Voltage |
| Housing Material Finish | Epoxy Coat with Powder Finish |
| For Environment | Hazardous Location |
| Face Diameter | 2.23 in |
| Maximum Wire Size | 4 AWG |
| Grounding | Grounded |
| Compatible with Series | Powertite |
| Phase | Three |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Polarized | Yes |
| Insulation Material | Fiberglass-Reinforced Polyester |
| Current Rating | 60 A |
| For Maximum Cable Diameter | 1-3/8 in |
| Horsepower Rating | 30 HP |
| Minimum Wire Size | 6 AWG |
| NEMA Enclosure Rating | 3, 3R, 4, 4X, 7CD, 9FG |
| For Minimum Cable Diameter | 1/2 in |
| Voltage Rating | 600V AC |
| Cap Type | Screw-On Cap |
| Housing Material | Metallic |
| Grounding Style | Style 2 |
| Housing Color | Gray |
| Switch Rated | No |
| Reverse Service | No |
| Connection Orientation | Straight |
| Plug Cable Diameter | 30 Amp: 0.500 to 1.125#8221;, 60 Amp: 0.500 to 1.375#8221;, 100 Amp: 0.875#8221; to 1.906#8221; |
| Hazardous Area Classification | Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups F, G; Class III; NEMA 3, 3R, 4, 4X, 7CD, 9FG |
| Materials and Finishes | Receptacles, mounting box, covers and plug housings are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Insulating blocks are fiber glass reinforced polyester. |
| Amperage | 30, 60, 100 |
| Mounting Box Entries | Feed-Thru |
| Wire Range | 30 Amp: #10-#8, 60 Amp: #6-#4, 100 Amp: #2-1/0 |
| Package Quantity | 1 |
