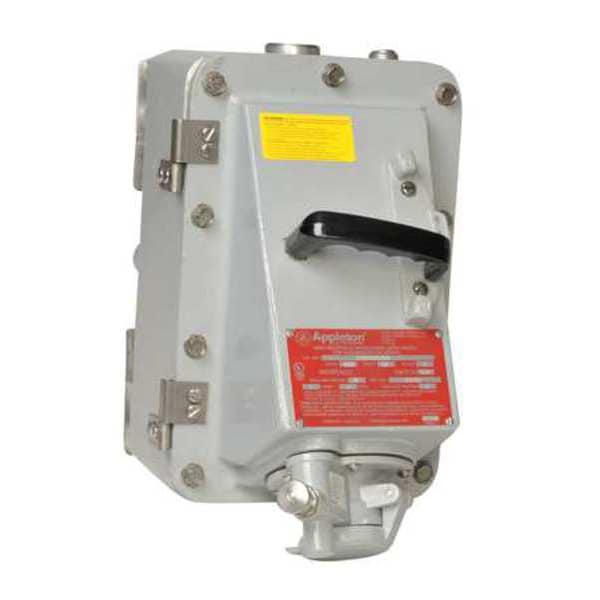

El receptáculo Appleton Electric EBR6034FB70 tiene una capacidad de 60 amperios y cumple con las normas NEMA 3R, 4, 4X, 7CD y 9FG. Conexión de 4 polos y 3 cables para una instalación segura y confiable.
| Item | Receptacle |
|---|---|
| Voltage | 600V AC |
| NEMA Rating | 3, 3R, 4, 4X, 7CD, 9FG |
| Number of Wires | 3 |
| Number of Poles | 4 |
| Circuit Breaker Amp Rating | 70 A |
| HP | 40 HP |
| Amps | 60 |
| Material | Copper-Free Aluminum |
| Mounting Box | Copperfree Aluminum |
| Hz | 60 |
| Circuit Breaker | Yes |
| Finish | Epoxy Powder Coated |
| Standards | E10784, E313360(EBR), E79132, UL 1010 (UL 1203), UL 1682, UL 894 |
| Hub Size | 3/4 in, 1-1/2 in |
| Grounding | Grounded |
| Hub Diameter | 1-1/2 in |
| Includes Mounting Hardware | Yes |
| For Maximum Cable Diameter | Not Applicable |
| Voltage Rating | 600V AC |
| Compatible with Series | Powertite |
| Disconnect Switch | No |
| Phase | Three |
| Number of Gangs | 1 |
| Horsepower Rating | 40 HP |
| Enclosure Lock Type | Padlockable |
| Wire Connection Type | Quick-Disconnect Terminals |
| Locking Handle | Yes |
| Maximum Wire Size | Not Applicable |
| Hub Type | Feed Through |
| Includes | Screw Cap |
| For Environment | Hazardous Location |
| Housing Material | Copper Free Aluminum |
| Fuse Protection | Not Applicable |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
| Resistance Properties | Waterproof |
| Fuse Type | Not Applicable |
| Housing Material Finish | Epoxy Powder Coated |
| For Minimum Cable Diameter | Not Applicable |
| Compatible Plug Manufacturer Part Number | Not Applicable |
| Current Rating | 60 A |
| Insulation Material | Fiberglass-Reinforced Polyester |
| NEMA Enclosure Rating | 9FG, 3, 4X, 3R, 4, 7CD |
| Circuit Breaker Type | FDB 600V AC |
| Handle Type | Knob |
| Contact Material | Brass |
| Package Quantity | 1 |
