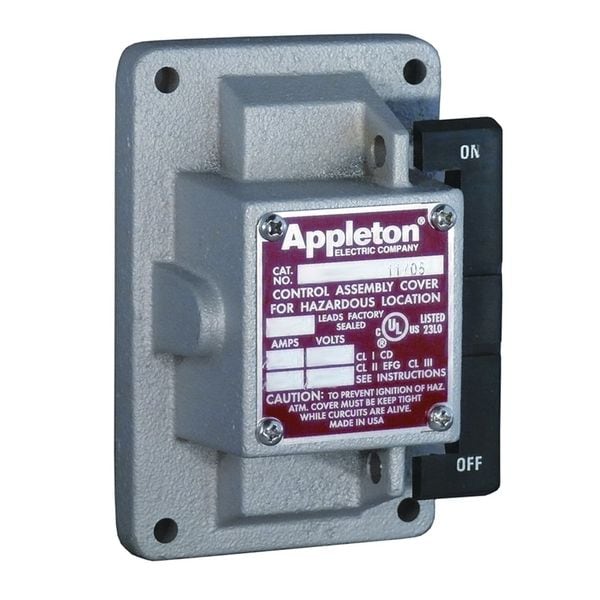

Tapa/Cámara para Interruptor de Palanca, 1 polo, 1 ganga, 20A
| Item | Switch Cover |
|---|---|
| HP | 2 hp @ 120/240V AC |
| Material | Malleable Iron |
| For Use With | EDS Series Tumbler Switches |
| Type of Operator | Momentary Rocker Arm |
| Number of Gangs | 1 |
| Voltage | 120/277V AC |
| Switch Type | 1-Pole |
| Amps | 20 |
| Depth | 4.69 in |
| Legend Markings | On/Off |
| Width | 3 in |
| Height | 4.63 in |
| Safety Rating | UL 894, UL 1203, UL Listed for Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III |
| Includes | Malleable Iron Cover, Rocker Operator, 1-Pole, 20A |
| Standard Finishes | Tumbler switches have a triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat |
| Nameplate Mounting Bracket | Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog. |
| Standard Materials | Malleable iron body and covers. Copperfree (4/10 of 1% max.) aluminum sealing chamber (on select models). Nylon 6/6 handle. Corrosion resistant stainless steel nameplate mounting bracket (optional) |
| NEC and CEC Certifications and Compliances | Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 3, 7 BCD, 9EFG |
| Option Materials | 1- or 2-gang copperfree (4/10 of 1% max.) aluminum bodies and covers available. See catalog pages for details |
| Legend | On/Off |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Compatible Product Type | Tumbler Switches |
| Product Type | Cover |
| Compatible with Series | EDS |
| Package Quantity | 1 |
