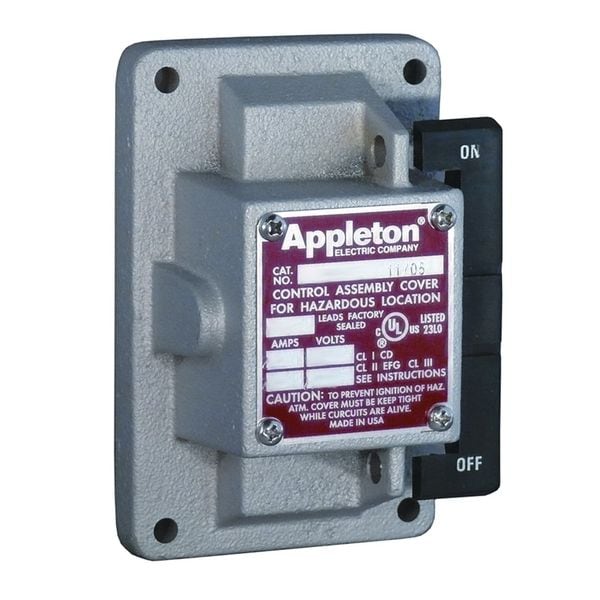

Cubierta/Cámara de interruptor basculante, 1 polo, 1 gang, 30A
| Item | Switch Cover |
|---|---|
| Number of Gangs | 1 |
| Legend | On/Off |
| Type of Operator | Momentary Rocker Arm |
| NEMA Rating | NEMA 3, 7 BCD, 9EFG |
| For Use With | EDS Series Tumbler Switches |
| Legend Markings | On/Off |
| Safety Rating | UL 894, UL 1203, UL Listed for Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III |
| Material | Malleable Iron |
| Voltage | 120/277V AC |
| Depth | 4.69 in |
| HP | 2 hp @ 120/240V AC |
| Switch Type | 1-Pole |
| Width | 3 in |
| Amps | 30 |
| Height | 4.63 in |
| Includes | Malleable Iron Cover, Rocker Operator, 1-Pole, 30A Switch |
| Compatible with Series | EDS |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Compatible Product Type | Tumbler Switches |
| Product Type | Cover |
| Package Quantity | 1 |
