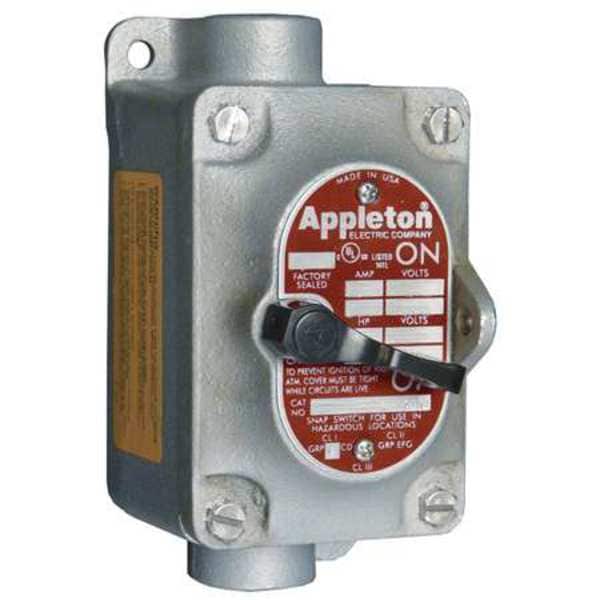

El interruptor basculante de la serie EDSC de Appleton Electric es ideal para controlar la iluminación en espacios interiores. Con diseño de 1 módulo y 1 polo, garantiza un funcionamiento seguro y confiable.
| Item | Tumbler Switch |
|---|---|
| Series | EDS |
| Type of Operator | Front Operated |
| Number of Gangs | 1 |
| Switch Type | 1-Pole |
| Amps | 20 |
| Voltage | 120 to 277V AC |
| HP | 1 hp @ 120V AC, 2 hp @ 240V AC |
| Hub Style | Feed-Thru |
| Hub Size | 1/2 in |
| Legend Markings | On/Off |
| Height | 4-5/8 in |
| Safety Rating | Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III |
| Body Material | Malleable Iron |
| Standards | UL 1203, UL 894 |
| Special Features | Corrosion Resistant, Pad Lockable in the On or Off Position |
| Mounting | Mounting Holes |
| Width | 3 in |
| NEMA Rating | 7C, 7D, 9E, 9F, 9G |
| Depth | 4-11/16 in |
| Actuator Style | Front Lever |
| Mounting Orientation | Vertical |
| Resistance Properties | Corrosion Resistant, Dust Ignition Proof, Explosion Proof |
| Overall Depth | 4.68 in |
| NEMA Enclosure Rating | 3, 7, 9 |
| Horsepower @ 240V AC | 2 hp |
| Overall Height | 4.62 in |
| Voltage Rating - Maximum | 277 V AC |
| Hazardous Location Specification | Class I, Div 1, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Number of Poles | 1 |
| Overall Width | 3 in |
| Horsepower @ 120V AC | 1 HP |
| Current Rating | 20 A |
| Package Quantity | 1 |
