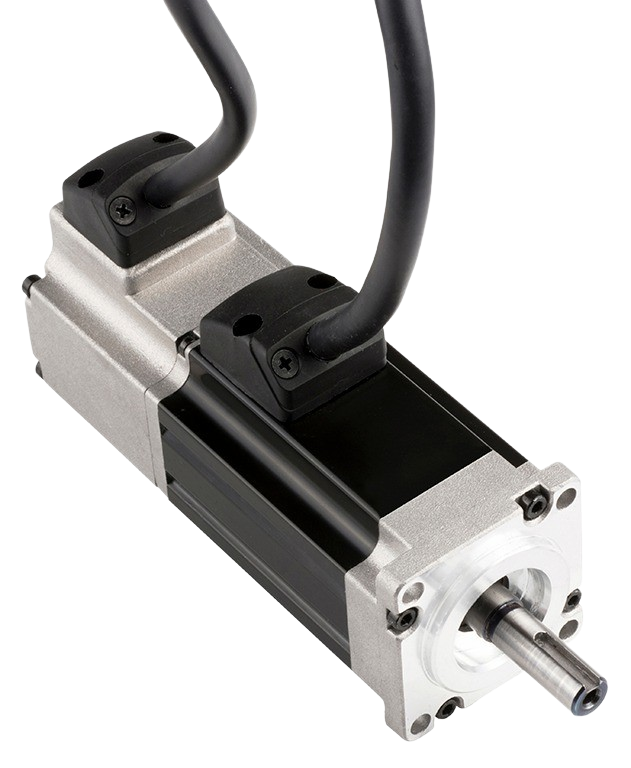

High performance brushless AC servo motor. Standard configuration includes high-resolution, incremental encoder feedback. This motor is UL Recognized in the US and Canada, file no. E472271.
| Output Power | 100 W |
|---|---|
| Maximum Speed | 2,900 rpm |
| Rated Torque | 0.96 N*m |
| Motor Frame Size | 40 mm |
| Input Current | 5.2A rms |
| Input Voltage | DC 24 V |
| Shaft Diameter | 8mm(0.32in) |
| Weight | 0.54 kg |
