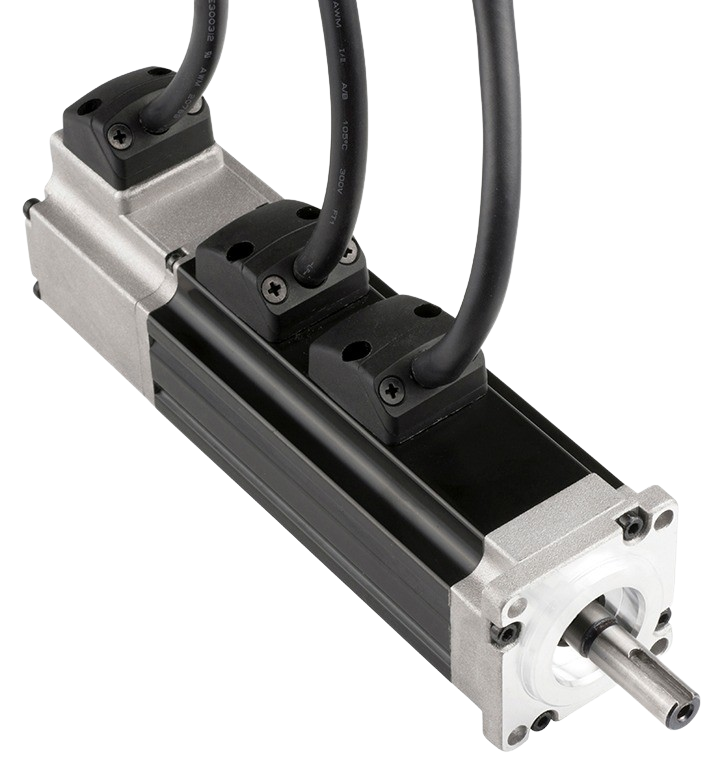

High performance brushless AC servo motor with integral holding brake and high-resolution, incremental encoder feedback. This motor is UL Recognized in the US and Canada, file no. E472271. For a version of this motor without integral holding brake see J0100-301-3-000 .
| Output Power | 100 W |
|---|---|
| Maximum Speed | 3,000 rpm |
| Rated Torque | 0.92 N*m |
| Motor Frame Size | 40 mm |
| Input Current | 1.65A rms |
| Input Voltage | 120 V AC |
| Shaft Diameter | 8mm(0.32in) |
| Weight | 0.82 kg |
