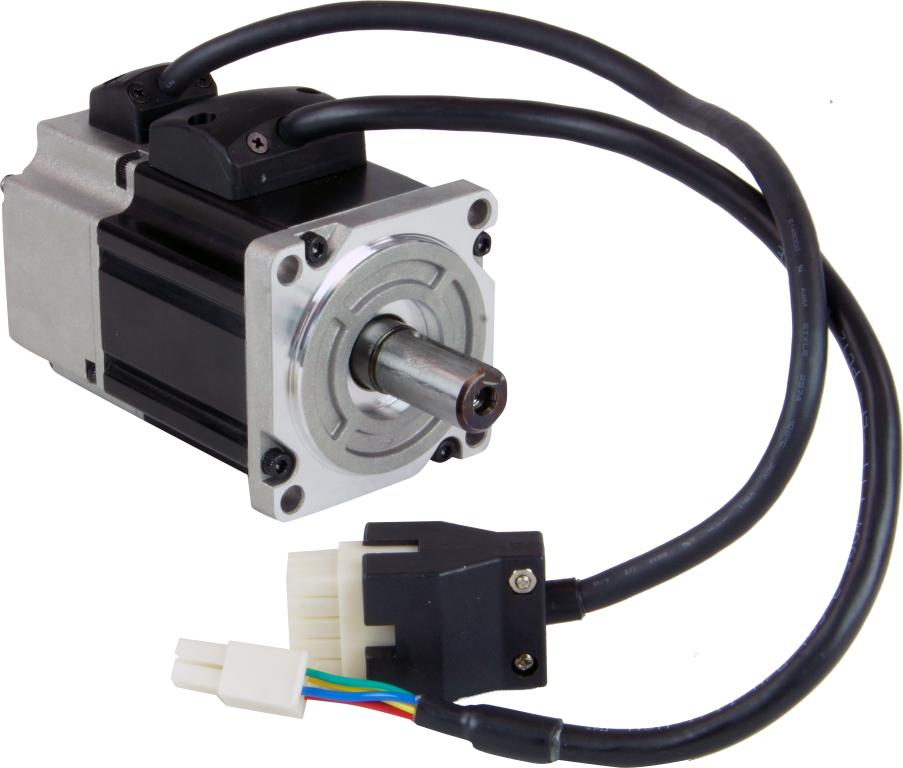

High performance brushless AC servo motor. Standard configuration includes high-resolution, incremental encoder feedback. This motor is UL Recognized in the US and Canada, file no. E472271.
| Output Power | 200 W |
|---|---|
| Maximum Speed | 3,000 rpm |
| Rated Torque | 1.9 N*m |
| Motor Frame Size | 60 mm |
| Input Current | 1.5A rms |
| Input Voltage | 220 V AC |
| Shaft Diameter | 14 mm |
| Weight | 1.04 kg |
